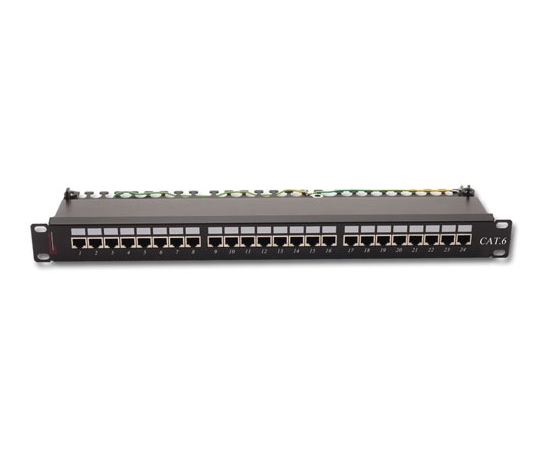

Premium Line / 176122412 / Patch Panel Cat6 24 Port
Premium Line 176122412 Loaded Patch Panel 24 Port Cat6
Premium-Line Class 6 unshielded patch panels are available for ANSI / TIA-568.2-D, ISO / IEC 11801-1, and
Specifications EN50173-1, Class E. Devices are typically compliant with the EUROHS Directive.
The standard size 1U 19 "chassis fits all 19" racks. The main metal frame is made of SECC material over 1.0mm thick. The duplex type IDC accepts 22-26 AWG solid cables for easy connection with 110 or Krone tools. Available on 24 ports (1U).
Features
- Rack mountable in a standard 1U high, 19” wide size.
- Metal frame made of SECC material, with the thickness over 1.0mm.
- Dual type IDC accepts 22-26 AWG solid cable.
- Easily terminated with 110 or Krone tools.
- Complies with ANSI/TIA-568C.2, ISO/IEC 11801, EN 50173-1 and EU RoHS.
- Suitable for 10BASE-T, 100BASE-TX and 1000BASE-T applications.
Specifications
| Color Code | Black |
| Dimensions | 19" |
| Interface Type | RJ45 |
| No. of Ports | 24 |
| Performance Level | CAT6 |
| Rack Space | 1 RU |
| Standards | ANSI/TIA-568C.2, ISO/IEC 11801, EN 50173-1 -EU ROHS |
| Type | Standard |
