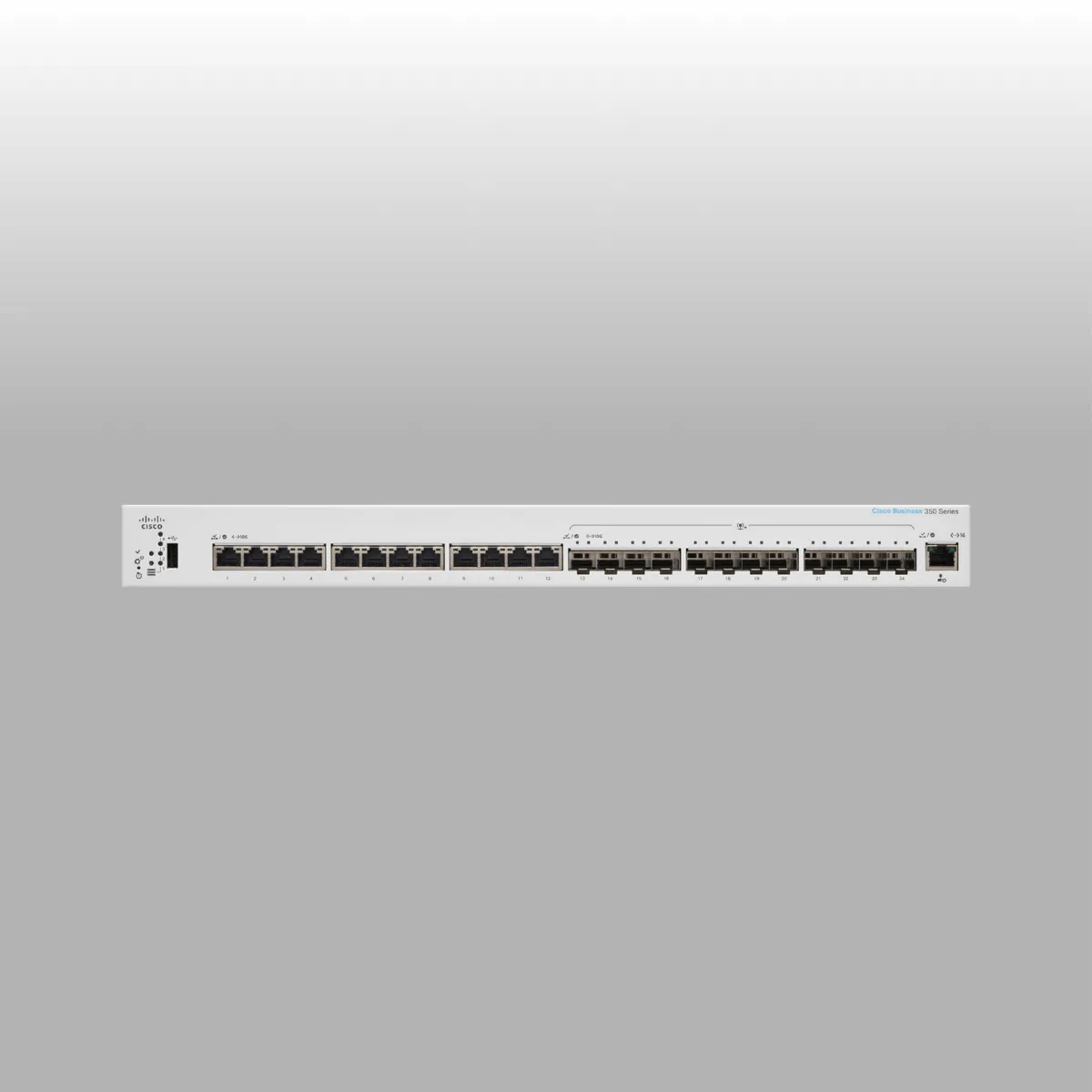

Cisco / CBS350-24XTS / 12 x 10G copper + 12 x 10G SFP+ + 1 x GE OOB management

Cisco / CBS350-24XTS / 12 x 10G Copper + 12 x 10G SFP+ + 1 x GE OOB Managed Switch

High-Speed 10G Performance for Every Deployment

The Cisco / CBS350-24XTS / 12 x 10G Copper + 12 x 10G SFP+ + 1 x GE OOB Managed Switch is a genuine Cisco Business 350 Series fully managed Layer 3 switch engineered for high-speed aggregation, data centre access, and 10 Gigabit backbone deployments. It targets small and medium-sized businesses, enterprise branch offices, schools, and retail environments. Specifically, it features twelve 10G RJ45 copper ports alongside twelve dedicated 10G SFP+ fibre ports. Consequently, the switch delivers a 480 Gbps switching capacity and a 240 Mpps forwarding rate — true non-blocking wire-speed performance across all 24 data ports simultaneously.

Dedicated Out-of-Band Management

Additionally, a dedicated 1 x Gigabit Ethernet out-of-band (OOB) management port ensures administrators maintain secure, independent network access. This port stays completely separate from the production data plane. Therefore, management traffic never competes with user data — a critical capability in high-availability production environments. Furthermore, the switch runs on an 800 MHz ARM processor with 512 MB RAM, providing the processing headroom needed for advanced routing and security functions at 10G line rate.

Advanced Security & Layer 3 Routing

Moreover, the CBS350-24XTS delivers enterprise-grade security without requiring a separate security appliance. IP-MAC Port Binding, IPv6 First Hop Security, Dynamic ARP Inspection, IP Source Guard, and DHCP Snooping all work together to detect and block deliberate network attacks. Additionally, RIP dynamic routing simplifies routing configurations in complex multi-subnet environments. As a result, the switch protects and manages traffic across both IPv4 and IPv6 networks at every layer.

True Stacking & Simplified Management

Furthermore, the switch supports true hardware stacking, enabling administrators to configure, manage, and troubleshoot all stacked switches as a single logical unit using one IP address. Cross-stack QoS, VLANs, LAGs, and port mirroring are all fully supported. Consequently, scaling the network becomes straightforward without adding management overhead. In addition, the Cisco Business Dashboard and Cisco Business mobile app automate deployment, monitoring, and lifecycle management from a single intuitive interface — accessible from any browser or smartphone. Whether you are building a 10G aggregation layer, connecting high-performance servers, or standardising 10G infrastructure across multiple sites, the Cisco / CBS350-24XTS / 12 x 10G Copper + 12 x 10G SFP+ + 1 x GE OOB Managed Switch delivers the speed, flexibility, and Cisco-grade reliability your network demands. To check availability, check our stock. For full official specifications, visit the Cisco Business 350 Series official datasheet page.

Key Features:

• 12 x 10G Copper + 12 x 10G SFP+ — 480 Gbps — Twenty-four 10 Gigabit ports (12 RJ45 copper + 12 dedicated SFP+ fibre) deliver 480 Gbps switching and 240 Mpps forwarding for true non-blocking wire-speed performance
• Dedicated 1 x GE Out-of-Band Management Port — Independent Gigabit OOB management port keeps administrative access completely separate from the production network — essential for always-on high-availability environments
• Advanced Layer 3 Security & Dynamic Routing — IP-MAC Port Binding, IPv6 First Hop Security, Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, 802.1X, ACL, and RIP dynamic routing protect and manage traffic at every layer
• True Stacking Support — Stack multiple CBS350 switches into a single logical unit managed by one IP address, with cross-stack QoS, VLANs, LAGs, and port mirroring for simplified high-density deployments
• Cisco Business Dashboard & Mobile App — Complete management via intuitive web GUI, Cisco Business Dashboard, and Cisco Business mobile app, with 800 MHz ARM CPU and 512 MB RAM for smooth line-rate performance
