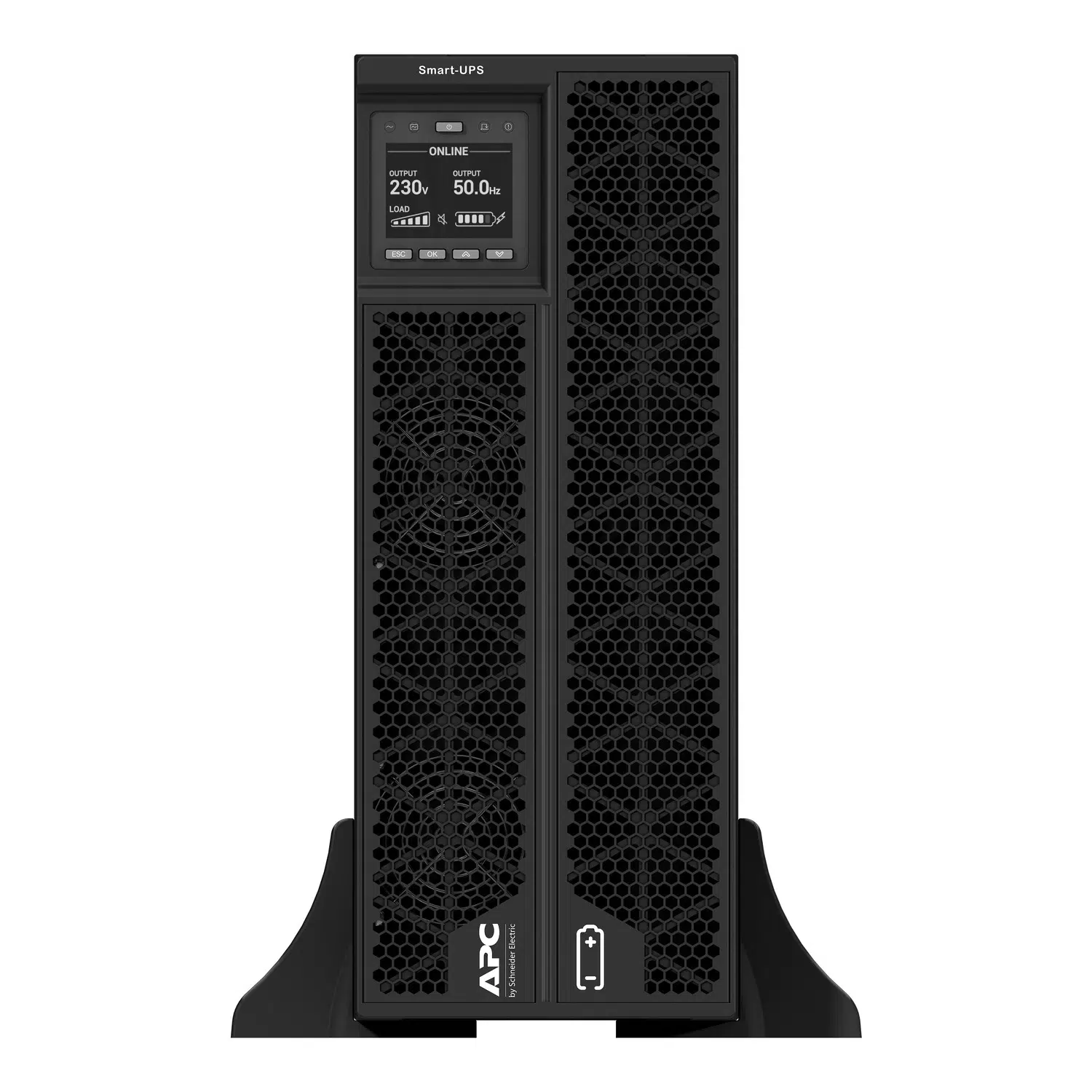

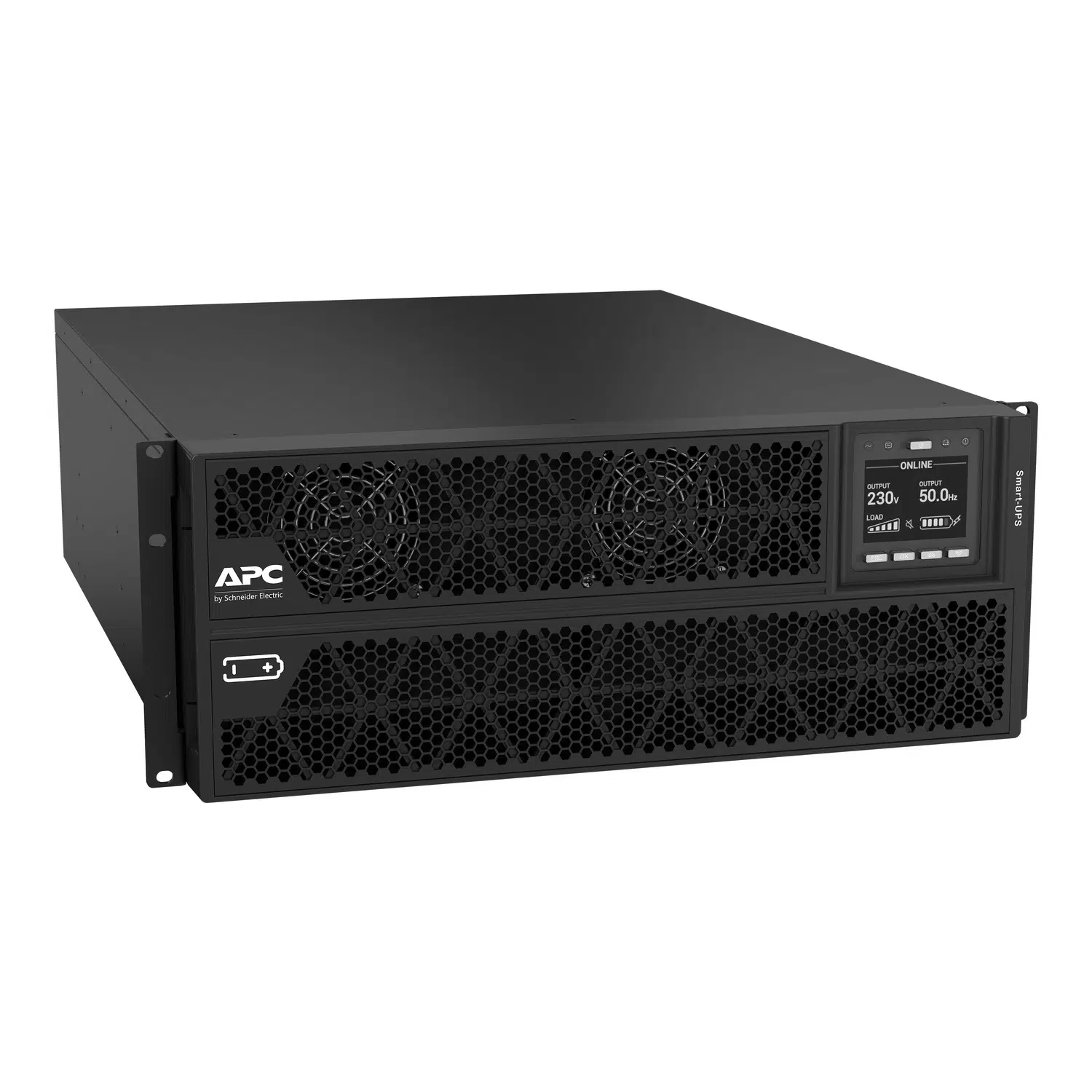

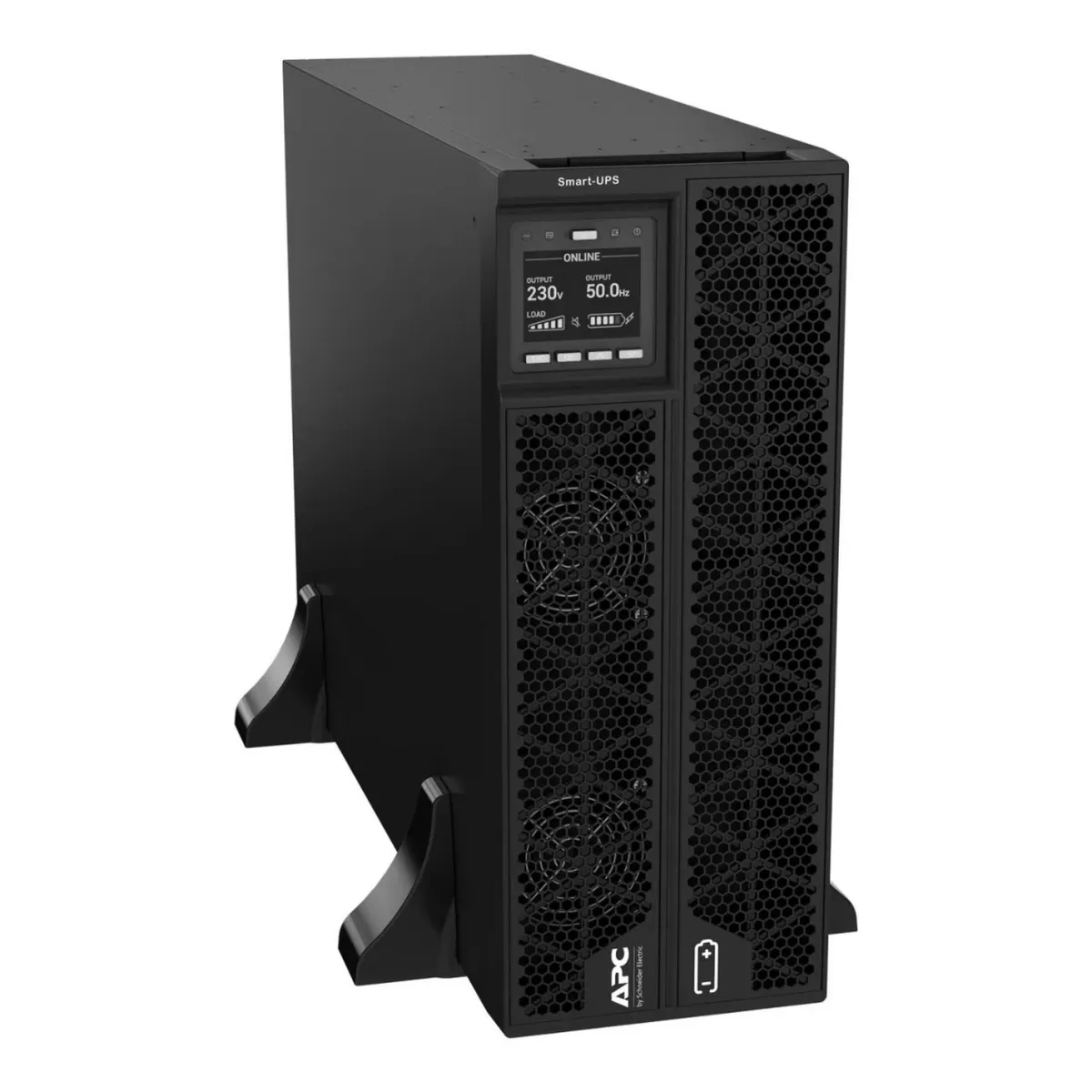

The SRTG6KXLI from APC by Schneider Electric delivers 6 kVA / 6 kW of true double-conversion, online UPS protection in a space-saving 4U rack/tower convertible chassis. It can be deployed as a 19″ rack‑mount or as a free-standing tower—ideal for data centers, telecom closets, and enterprise IT environments
Power & Performance
- Online double-conversion topology provides seamless, zero-transfer-time power even under mains disturbances.
- Supports a nominal output voltage configurable to 220 / 230 / 240 V and automatically synchronizes to utility frequency (±4 Hz)
- High internal efficiency—up to ~93.5% under typical load conditions—helps reduce energy loss and operating cost
Input & Output Specifications
- Input voltage range up to 285 V (max); output regulation maintained at 220–240 V depending on configuration

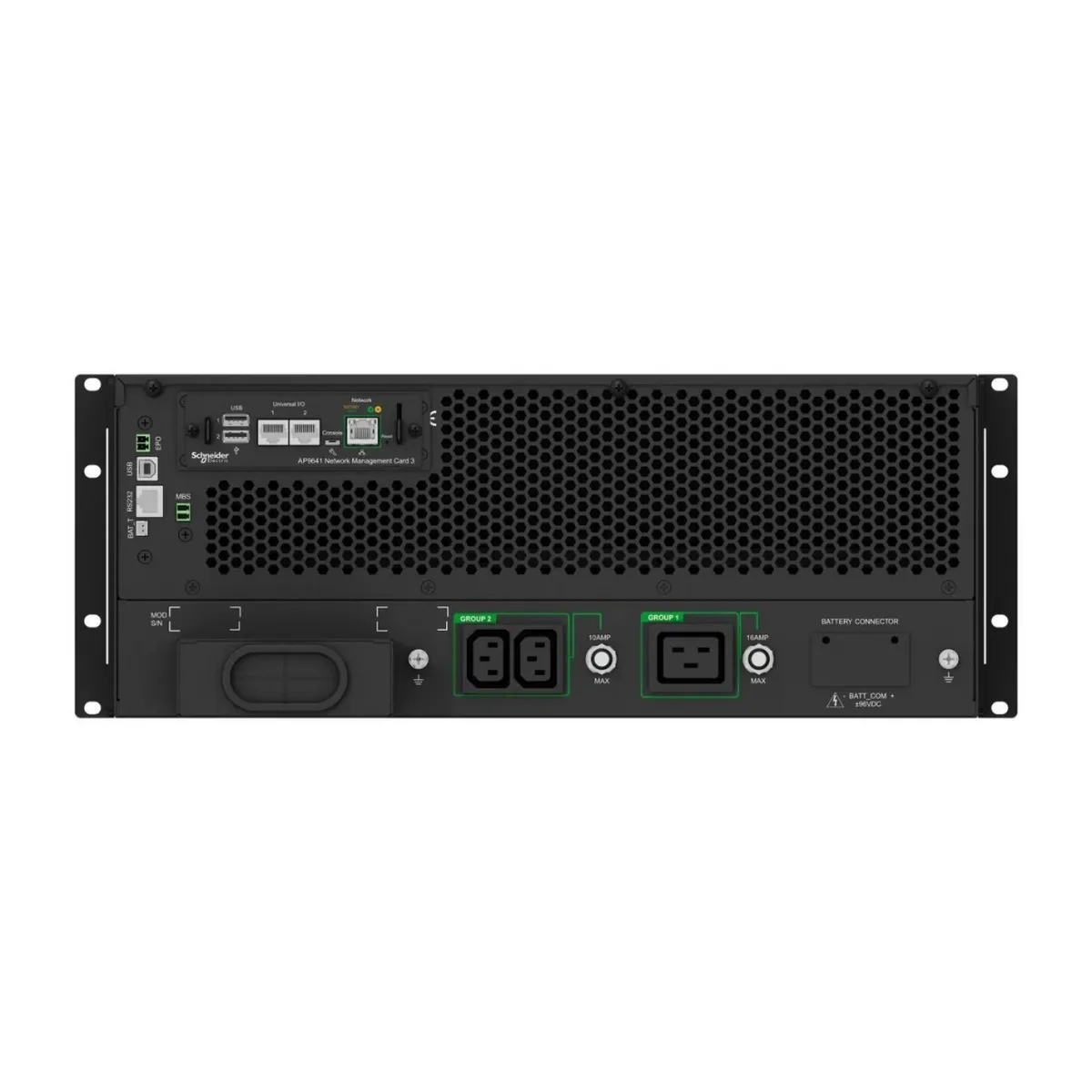

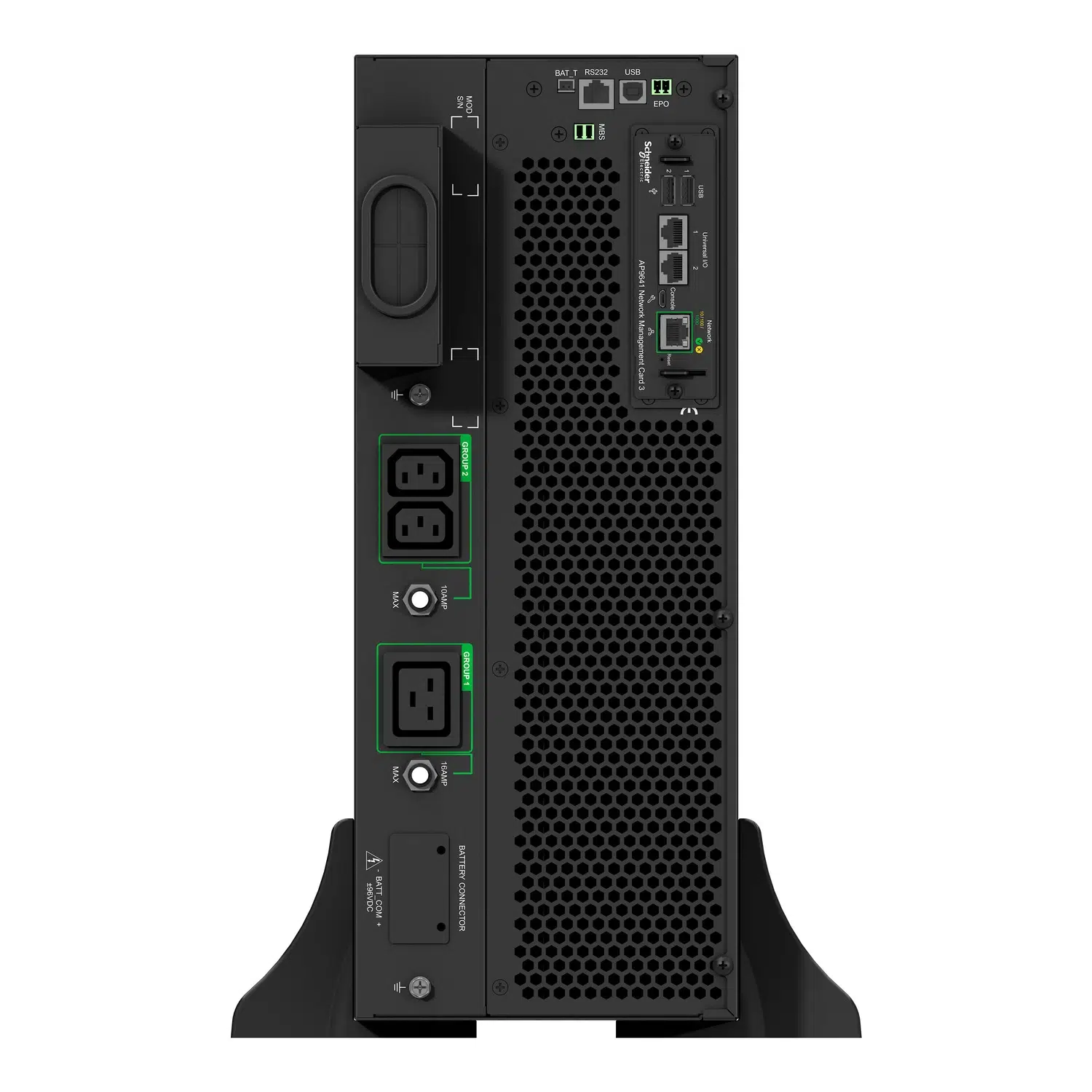

- Output connections include: 2 × IEC C13 receptacles, 1 × IEC C19 receptacle, plus a hard‑wired 3‑wire outlet (H, N + E) for heavy-duty loads
Monitoring, Management & Expandability
- Equipped with an intuitive LCD control panel that displays critical real-time information such as load level, input/output voltages, and battery status
- Includes built-in support for remote connectivity via SNMP/network management card, USB, and serial interfaces for centralized UPS monitoring and management
- Scalable runtime capability by adding optional external battery packs for longer backup time.
Physical Characteristics & Installation
- Rack‑mount height: 4U, with dimensions approximately 17.5 cm (H) × 44 cm (W) × 62 cm (D) and net weight around 55.9 kg
- Comes with rack-mount ears or convertible for tower use. Recommended to install in a lower rack position for improved stability and cooling.
Safety & Reliability Features
- Certified for continuous operation in demanding environments.
- Offers protection against overload, short circuit, as well as surge and line transient suppression when connected with properly protected circuits.
- Intelligent battery management ensures reliable charging and extends battery service life.
- Audible alarms and auto-shutdown functions activate under critical battery or load conditions.
Key Features at a Glance
| Feature | Specification |
|---|---|
| Power Capacity | 6000 VA / 6000 W online, double‑conversion |
| Form Factor | 4U Rack/Tower convertible (19″) |
| Input Voltage | 230 V nominal; up to 285 V max |
| Output Voltage | Configurable: 220 / 230 / 240 V |
| Connections | 2 × IEC C13, 1 × IEC C19, 1 × hard‑wired outlet |
| Efficiency | Approx. 93.5% |
| Display & Controls | LCD panel with status info |
| Network Management | SNMP/USB/serial for remote monitoring |
| Expandable Runtime | Optional external battery packs available |
| Dimensions (HxWxD) | ~17.5 cm × 44 cm × 62 cm; weight ~55.9 kg |
Ideal Use Cases
- Enterprise servers, storage arrays, networking gear
- Critical infrastructure in small to medium data centers
- Sensitive ICT equipment requiring constant voltage regardless of utility power quality
Why Choose the APC Smart‑UPS SRTG6KXLI?
The SRTG6KXLI combines high capacity, full online protection, modular deployment flexibility, and remote management features—making it a top choice for mission-critical installations where uptime and power quality cannot be compromised.
