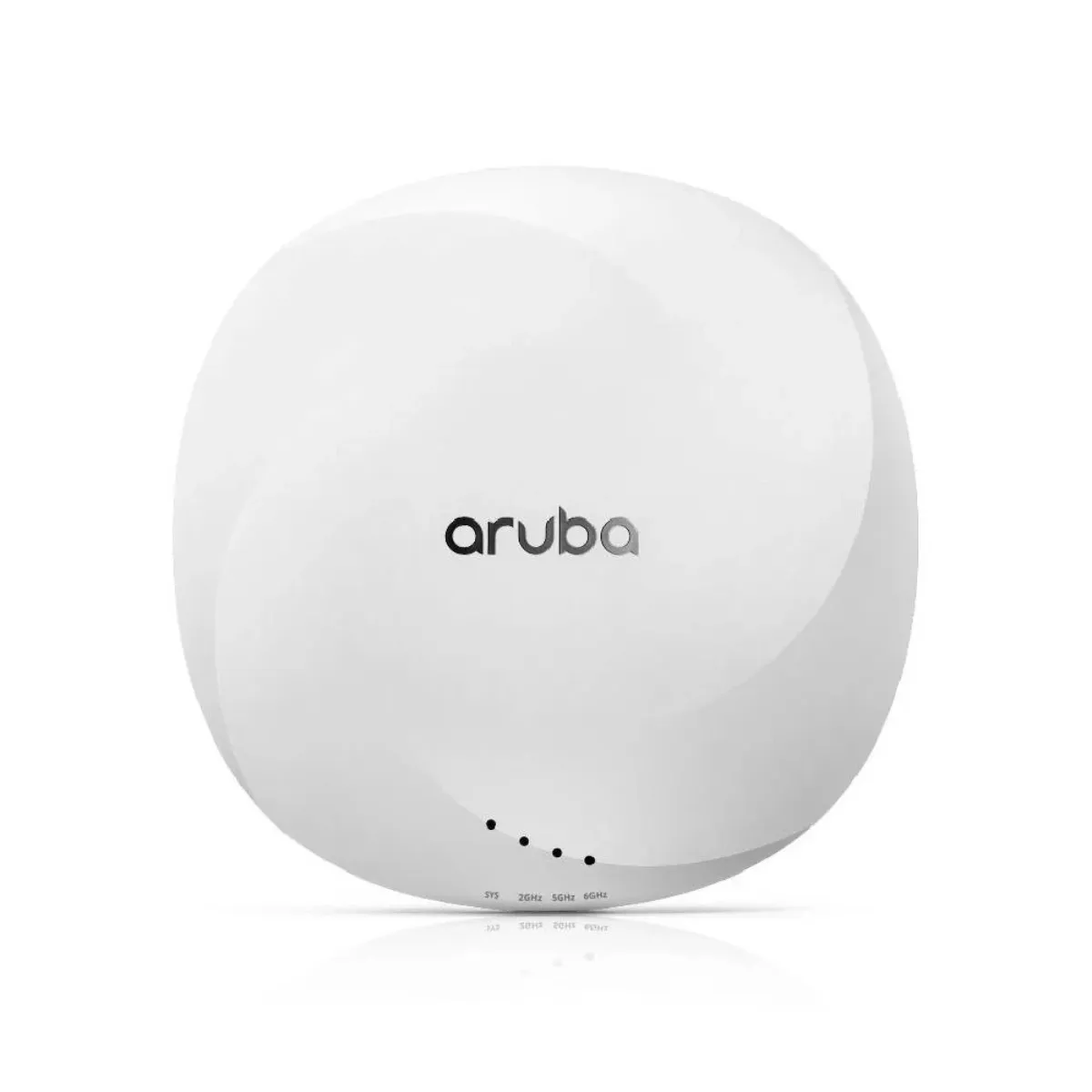

Next-Generation Connectivity with the Aruba Wi-Fi 6E Access Point
The Aruba Wi-Fi 6E Access Point (AP-615) is a powerful tri-band solution for modern campus environments. It provides a fast and reliable connection by utilizing the newly available 6GHz band. Furthermore, this compact device is designed specifically to handle the increasing density of mobile and IoT devices. Because it supports the Wi-Fi 6E standard, it effectively eliminates interference from older legacy hardware. Additionally, it offers a cost-effective way to upgrade your business network to the latest wireless technology.
Advanced Tri-Band Performance and Security This Aruba Wi-Fi 6E Access Point stands out because of its unique dual-radio architecture. Specifically, it allows you to choose any two bands across 2.4GHz, 5GHz, and 6GHz for maximum flexibility. Therefore, it is ideal for offices that need high-speed data transmission and low latency. Moreover, the device features built-in WPA3 security to keep your enterprise data safe. To see more hardware options, you can view our internal Aruba networking range (Internal Link). Alternatively, visit the official HPE Aruba website (Outbound Link) for detailed deployment guides.
Efficient Management and PoE Integration Setting up the Aruba Wi-Fi 6E Access Point is a simple task for IT professionals. It supports Power over Ethernet (PoE), which simplifies the cabling process significantly. Consequently, you can install the unit on ceilings or walls without needing separate power outlets. Since it integrates perfectly with Aruba Central, it offers great flexibility for cloud-based management. Finally, this product ensures that your campus network remains future-proof for many years. It is the best choice for anyone seeking a high-performance, professional-grade Wi-Fi 6E solution.
Key Features :
- Wi-Fi 6 (802.11ax) Technology: Supports the latest wireless standard for higher performance, efficiency, and capacity.
- Dual-Radio 2×2 MIMO: Provides up to 3 Gbps combined throughput across 2.4GHz and 5GHz bands.
- High-Speed Uplink Ports: Includes 1GbE and 2.5GbE uplink interfaces for faster wired backhaul.
- Advanced Security: Supports WPA3, Enhanced Open, and Aruba Policy Enforcement Firewall (PEF) for robust protection.
- AI-Powered Optimization: Managed via Aruba Central for intelligent insights, performance tuning, and troubleshooting.
- Flexible Deployment Modes: Operates in ArubaOS (controller-based) or Instant (controllerless) modes.
- IoT Integration: Built-in Bluetooth Low Energy (BLE) and Zigbee radios for easy IoT device connectivity.
- Energy Efficient: Power over Ethernet (PoE) support with smart power-saving capabilities.
- Scalable Performance: Designed for medium to large enterprises with dense device environments.
- Compact and Durable Design: Ideal for offices, educational institutions, and healthcare facilities.
| Category | Specification |
|---|---|
| Model | Aruba AP-615 |
| Wireless Standard | IEEE 802.11ax (Wi-Fi 6), backward compatible with 802.11a/b/g/n/ac |
| Radio Configuration | Dual-radio, 2×2 MIMO for 2.4GHz and 5GHz bands |
| Maximum Data Rate | Up to 3 Gbps (combined) |
| Frequency Bands | 2.4GHz (2×2:2) and 5GHz (2×2:2) |
| Supported Channels | 20, 40, 80, and 160 MHz channel bandwidths |
| Wi-Fi 6 Features | OFDMA, MU-MIMO, BSS Coloring, Target Wake Time (TWT), 1024-QAM |
| Antenna Type | Integrated omnidirectional antennas |
| Spatial Streams | 2 per radio (total 4) |
| Maximum Transmit Power | Up to 23 dBm (dependent on regulatory domain) |
| Uplink Interfaces | 1 × 100/1000/2500Base-T (RJ-45) Ethernet port |
| PoE Support | IEEE 802.3af/at (Class 4) |
| Power Consumption | Maximum 13.5W (PoE) |

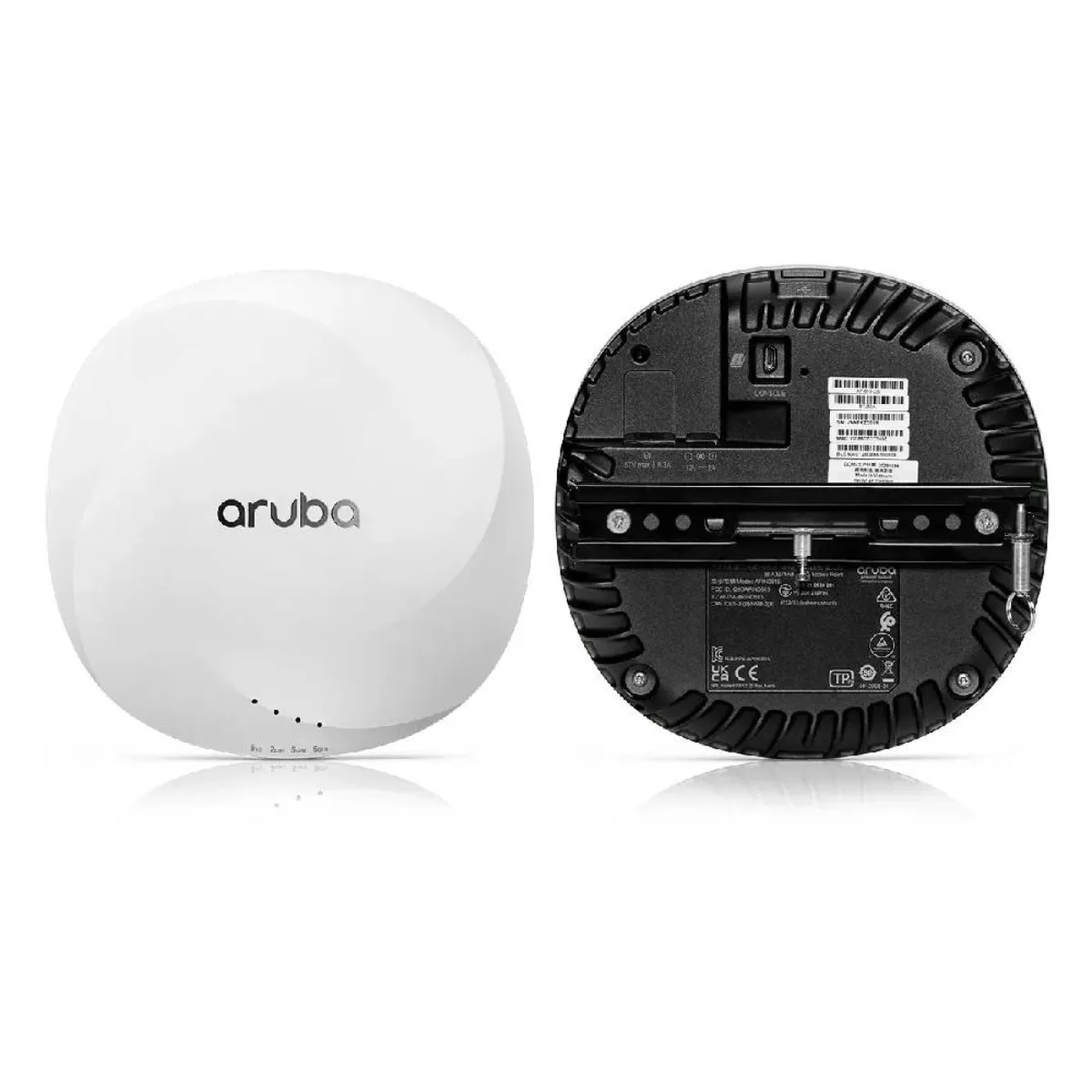

| Mounting Options | Ceiling, wall, or desk mount (mounting kit optional) |
| Management Options | Aruba Central (cloud), ArubaOS (controller), or Instant Mode (controllerless) |
| Security Features | WPA2, WPA3, Enhanced Open, Policy Enforcement Firewall (PEF), Secure Boot |
| IoT Capabilities | Integrated Bluetooth Low Energy (BLE) and Zigbee radios |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Storage Temperature | -40°C to +70°C (-40°F to 158°F) |
| Operating Humidity | 5% to 93% non-condensing |
| Dimensions (W × D × H) | 200 mm × 200 mm × 40 mm (approx.) |
| Weight | Approx. 750 g |
| Certifications | FCC, CE, IC, Wi-Fi Alliance, RoHS compliant |
