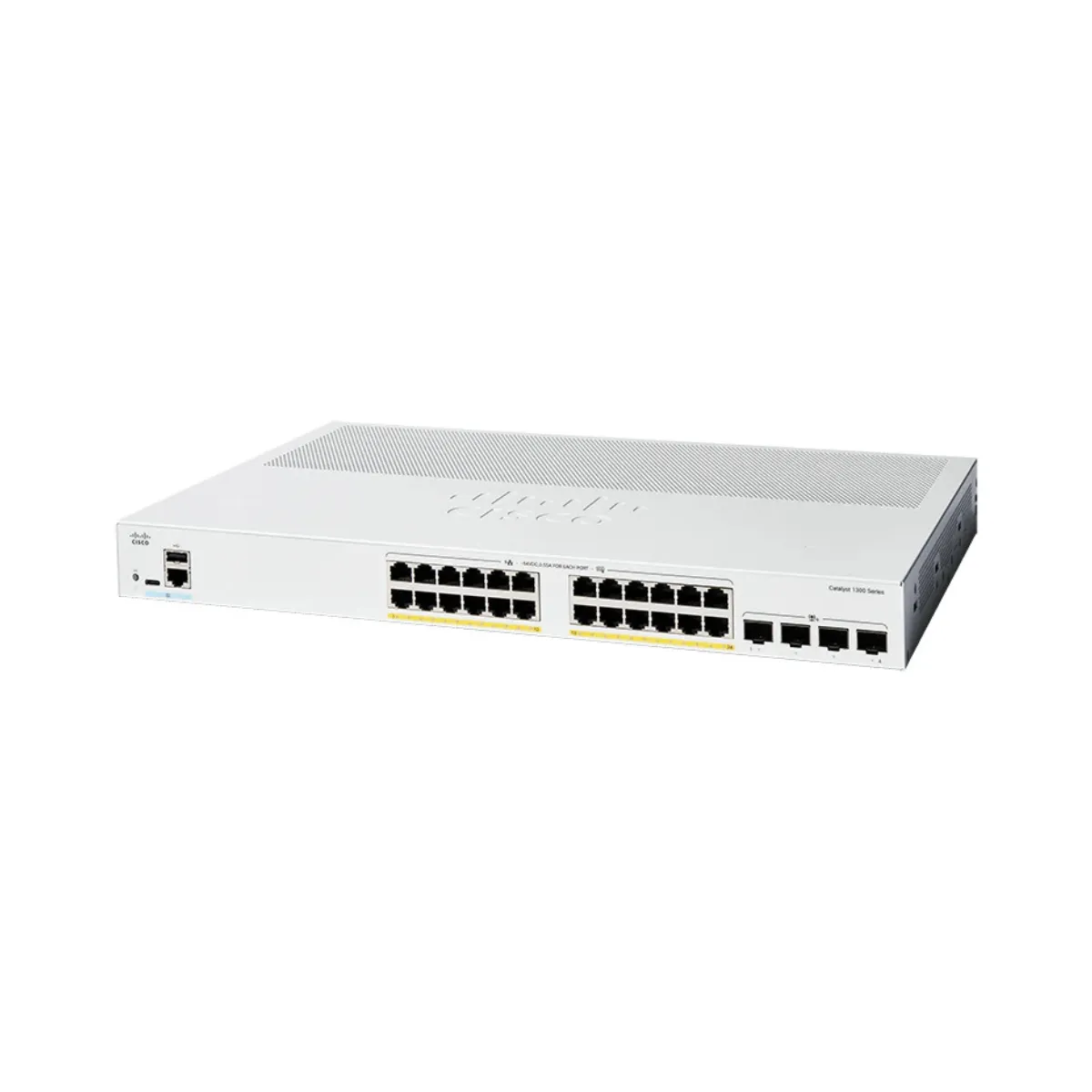

The Cisco / C1300-24P-4X / 24 Port Gigabit ( 24 POE – 195 W ) & 4 x 10GE SFP+ Managed Stackable Switch is a genuine Cisco Catalyst 1300 Series enterprise-class Layer 3 managed switch built for small and medium-sized businesses, enterprise branch offices, schools, retail environments, and wiring closet deployments. It features 24 x 10/100/1000 Mbps PoE+ downlink ports with a 195W total power budget, alongside 4 x 10 Gigabit SFP+ uplink ports Network Devices — delivering the perfect combination of high-density Gigabit access and 10G fibre uplinks in a single compact 1U form factor. Furthermore, the 195W PoE budget powers a full mix of IP cameras, wireless access points, VoIP phones, and IoT devices across all 24 ports simultaneously, without separate injectors or local power outlets. The 4 x 10G SFP+ uplinks eliminate any wired bottleneck between the access layer and the aggregation or core switch. The C1300-24P-4X delivers a switching capacity of 95.23 Gbps and a packet forwarding rate of 128 Mpps Optcore, ensuring wire-speed non-blocking performance at full port utilisation. Managed through the Cisco Business Dashboard and Cisco Business mobile app, the switch provides a simple and reliable management experience HPE Store accessible from both desktop and mobile interfaces. Additionally, the Catalyst 1300 Series operates on customised Linux OS software with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. Network Devices Security stays enterprise-grade at every level. Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, IEEE 802.1X port-based authentication, Port Security, and ACL policies work together to protect the network from both internal and external threats. Consequently, the C1300-24P-4X delivers the protection of an enterprise security platform without adding complexity or cost. Moreover, dual-image support enables software upgrades with minimal network downtime — a critical capability for production environments where continuous availability is non-negotiable. Full IPv4/IPv6 dual-stack support and Layer 3 static routing future-proof the network for next-generation infrastructure requirements. The switch also supports 802.3ad LACP link aggregation, 802.1Q VLANs, Voice VLAN, STP/RSTP/MSTP, IGMP snooping, and QoS prioritisation for voice and video traffic. Whether you are deploying a high-density access layer for IP surveillance, building out a PoE-powered wireless campus, or standardising switching infrastructure across multiple SMB sites, the Cisco / C1300-24P-4X / 24 Port Gigabit ( 24 POE – 195 W ) & 4 x 10GE SFP+ Managed Stackable Switch delivers the performance, PoE power, and Cisco reliability your network demands. To check availability, check our stock. For full official specifications, visit the Cisco Catalyst 1300 Series official datasheet.
Key Features:
- 24-Port PoE+ with 195W Budget — All 24 Gigabit ports support IEEE 802.3at/af PoE+, with a 195W total budget for powering IP cameras, wireless APs, VoIP phones, and IoT endpoints simultaneously
- 4 x 10G SFP+ Uplink Ports — Four dedicated 10 Gigabit SFP+ slots provide high-speed fibre uplinks to aggregation or core switches, eliminating wired bottlenecks at the access layer
- 95.23 Gbps Switching / 128 Mpps Forwarding — Non-blocking switching fabric with wire-speed packet forwarding handles full-load traffic across all 28 ports without performance degradation
- Enterprise Layer 3 Security — Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, 802.1X, Port Security, and ACL deliver multi-layer protection against deliberate network attacks
- Cisco Business Dashboard & Mobile App — Fully managed via Cisco Business Dashboard web GUI and Cisco Business mobile app, with dual-image support for zero-downtime software upgrades
| Feature | Specification / Detail |
|---|---|
| Brand | Cisco Systems, Inc. |
| Part Number | C1300-24P-4X |
| Product Line | Cisco Catalyst 1300 Series |
| Switch Type | Layer 3 Managed Switch |
| PoE+ Ports | 24 x 10/100/1000 Mbps (PoE+) |
| Uplink Ports | 4 x 10G SFP+ |
| Total Ports | 28 |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) |
| Total PoE Budget | 195 W |
| Switching Capacity | 95.23 Gbps |
| Packet Forwarding Rate | 128 Mpps |
| Switch OS | Customised Linux OS |
| Layer | Layer 3 (Static Routing, IPv4/IPv6) |
| VLAN | 802.1Q VLAN, Voice VLAN, Management VLAN |
| QoS | 802.1p, DSCP, Port-Based, Weighted Round Robin |
| Spanning Tree | STP / RSTP / MSTP |
| Link Aggregation | 802.3ad LACP |
| IGMP Snooping | V1 / V2 / V3 |
| Security | 802.1X, Dynamic ARP Inspection, IP Source Guard, DHCP Snooping, Port Security, ACL |
| IPv6 | Dual IPv4/IPv6 Stack, IPv6 Neighbour Discovery |
| Management | Cisco Business Dashboard, Cisco Business App, Web GUI, CLI, SSH, SNMPv1/v2c/v3 |
| Software Upgrade | Dual-image support — minimal downtime upgrades |
| Form Factor | 1U Rack-Mount |
| Certifications | CE, FCC, RoHS, UL |
