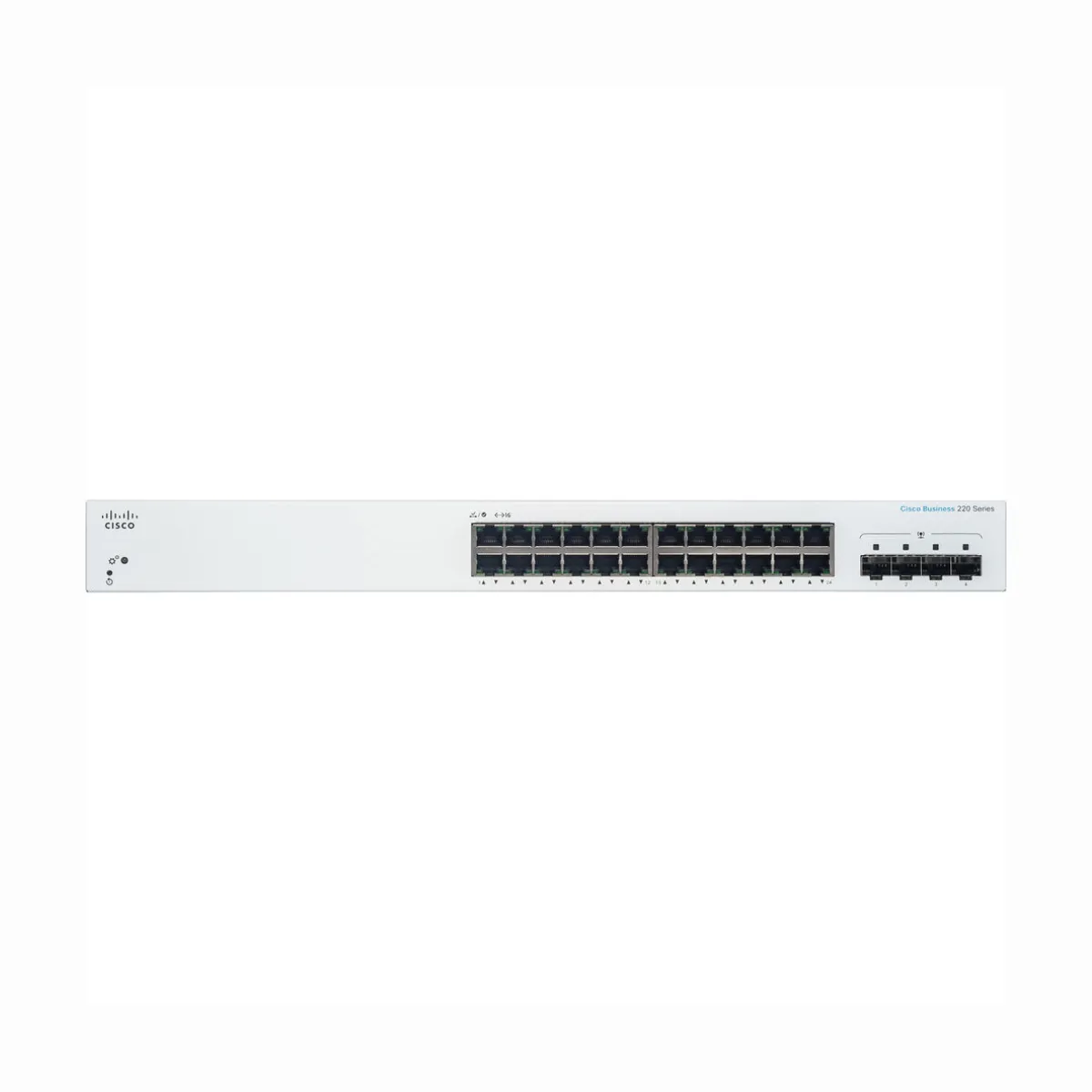

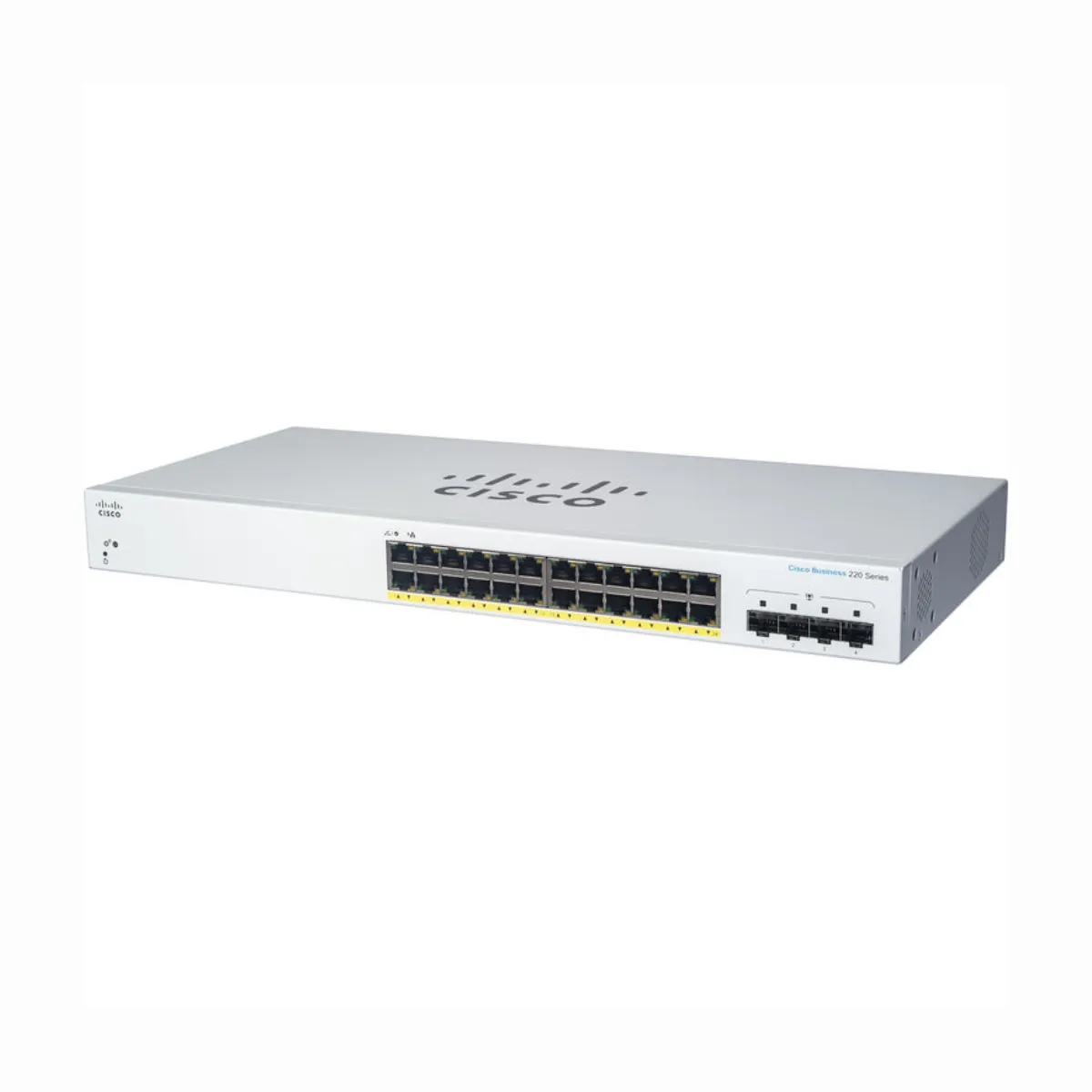

Cisco / CBS220-24T-4G / 24 Port Gigabit & 4 Gigabit SFP Smart Switch

This managed rackmount switch features 24 Gigabit Ethernet ports that connect compatible devices such as computers, network storage enclosures, and more. There are also four 1GbE SFP ports available for high-speed fiber connections. Its extensive Layer 2 features include link aggregation to create up to eight groups, each comprised of up to eight ports, for multi-Gig connections to compatible devices. Its 56 Gb/s switching capacity and 41.66 Mpps forwarding rate also help to ensure smooth and reliable data transfers. Use the Cisco Business Dashboard portal and mobile app to configure and monitor the Cisco CBS220-24T-4G and its connected devices. The fanless design also helps to reduce power consumption while allowing the switch to operate silently in the background.

Key Features
  • 24 x Gigabit Ethernet Ports
  • 4 x 1GbE SFP Slots
  • 56 Gb/s Switching Capacity
  • 41.66 Mpps Forwarding Rate

EGP11,000.00

Buy Now Compare
SKU:CBS220-24T-4G
ModelCBS220-24T-4G
Forwarding rate in millions of packets per second (mpps; 64-byte packets)41.66
Switching capacity in Gigabits per second (Gbps)56
Model NameCBS220-24T-4G
PoE Power BudgetN/A
Number of Ports That Support PoEN/A
Total system ports28 Gigabit Ethernet
RJ-45 ports24 Gigabit Ethernet
Uplink ports4 Gigabit Ethernet SFP
Packet buffer4.1 Mb
Supported SFP Modules by CBS220 modelsGLC-LH-SMD
MediaSingle-mode fiber
Speed1000 Mbps
Maximum distance10 km
Unit dimensions440 x 203 x 44 mm (17.3 x 8.0 x 1.7 in)
Unit weight2.75 kg (6.06 lb)
System power consumption110V=18.0W, 220V=18.0W
Power consumption (with PoE)N/A
Heat dissipation (BTU/hr)61.42
Order product IDCBS220-24T-4G-xx
Description24 10/100/1000 ports, 4 Gigabit SFP
No of Ports

"8 Ports"
"16 Ports"
"24Ports"
"48 ports"
