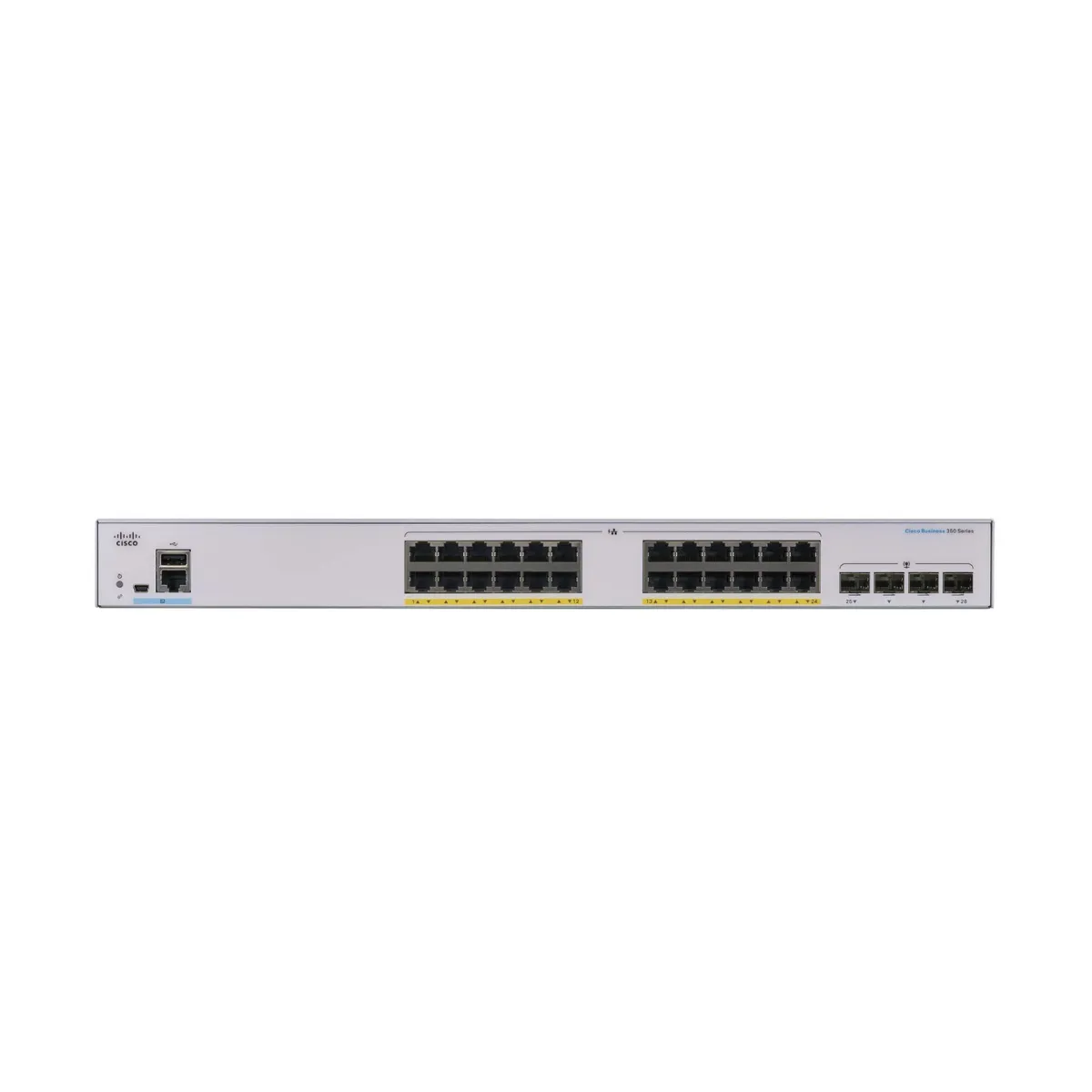

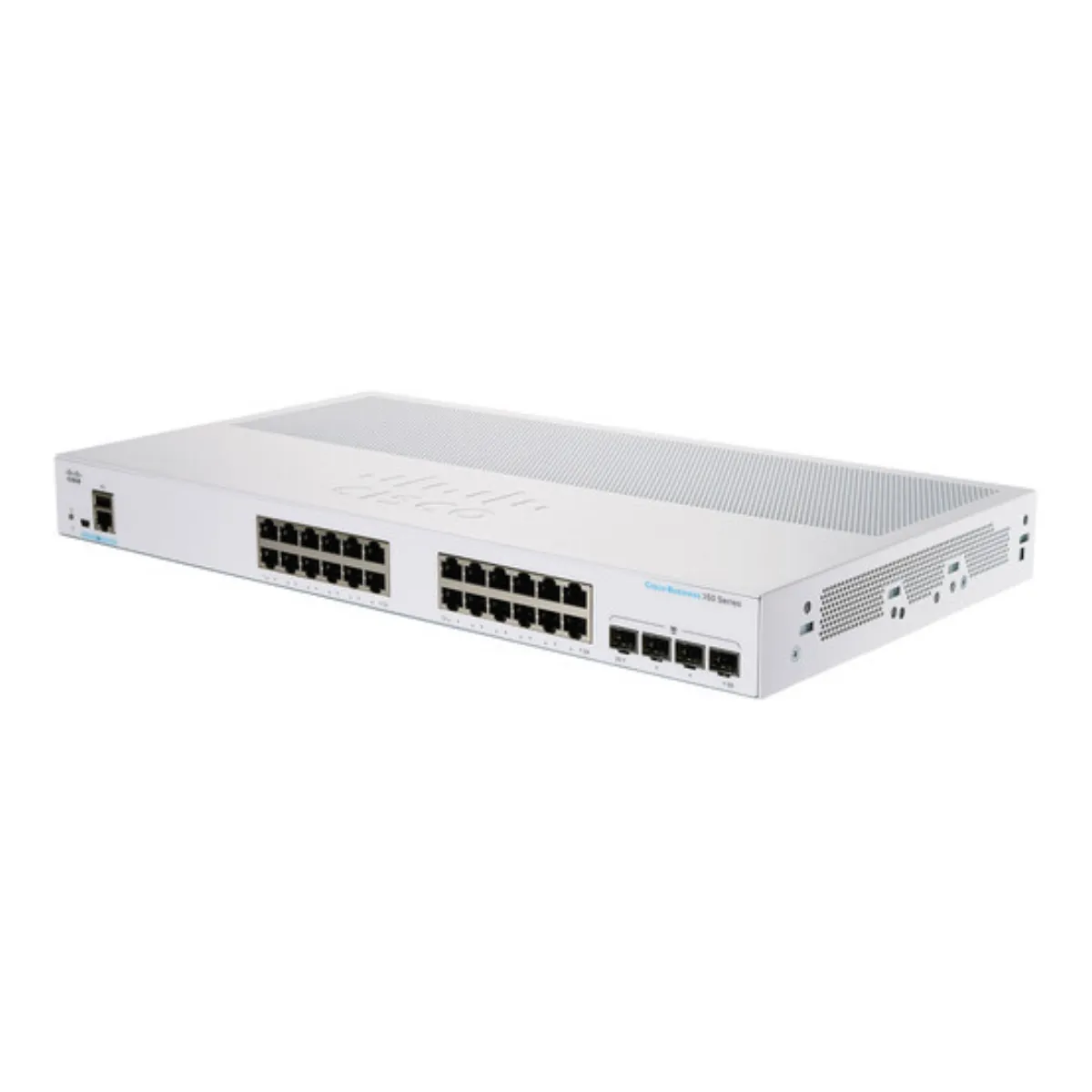

Cisco / CBS350-24P-4X / 24 Port Gigabit ( 24 POE – 195 W ) & 4 x 10GE SFP+ Managed Stackable Switch
The Cisco CBS350-24P-4X is a high-performance, 24-port Gigabit Ethernet managed switch designed for growing businesses that demand reliable connectivity, security, and scalability. It features 24 PoE+ ports with a total power budget of up to 195W, allowing seamless deployment of IP phones, access points, and surveillance cameras. Additionally, the switch includes 4 SFP+ 10-Gigabit uplink ports for high-speed backbone or server connections.
Part of Cisco’s Business 350 Series, the CBS350-24P-4X delivers Layer 3 switching capabilities, intuitive management tools, and robust security features such as VLANs, ACLs, and 802.1X authentication. Its fanless or low-noise design makes it suitable for both rack-mounted and office environments. Ideal for small to medium-sized networks, it combines enterprise-grade features with the simplicity and cost-effectiveness required by smaller organizations.
The Cisco CBS350-24P-4X is a high-performance, fully managed Layer 3 switch that forms part of the Cisco Business 350 Series, designed to deliver powerful network performance, enterprise-grade features, and simple operation tailored for small to medium-sized businesses. This switch combines 24 Gigabit Ethernet PoE+ ports and 4 10G SFP+ uplinks, offering flexibility, speed, and intelligent traffic management to meet demanding business networking needs.
Key Features:
24x Gigabit Ethernet PoE+ Ports: Support for IEEE 802.3af/at PoE+ provides up to 30W per port, with a total power budget of 195W, ideal for powering VoIP phones, wireless access points, IP cameras, and other PoE-enabled devices.
4x 10G SFP+ Uplink Ports: High-speed uplinks provide fast connectivity to core networks, servers, or storage systems, ensuring sufficient bandwidth for data-intensive applications and smooth traffic flow.
Advanced Layer 3 Capabilities: Includes static routing, inter-VLAN routing, and policy-based routing, enabling more control over network traffic and improved efficiency for growing networks.
Robust Security: Comprehensive security features such as 802.1X authentication, DHCP snooping, Access Control Lists (ACLs), and port security protect your network from unauthorized access and threats.
Simple Management: Offers an intuitive web-based GUI, CLI, and support for SNMP, allowing easy configuration and monitoring. Cisco Business Dashboard and mobile app support make remote management more accessible.
Energy Efficient: Supports IEEE 802.3az Energy Efficient Ethernet and optimized fanless or quiet design for reduced power consumption and silent operation.
Reliable Performance: Non-blocking architecture with a forwarding capacity of 128 Gbps and packet forwarding rate of 95.23 Mpps ensures smooth operation under heavy traffic loads.
Specifications:
Ports: 24 x 10/100/1000 PoE+ ports, 4 x 10G SFP+ uplink ports
PoE Budget: 195W total
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
MAC Address Table: 16K entries
MTBF: Over 1,000,000 hours (varies by model and conditions)
Rack Mountable: Yes (1U height)
Dimensions: 440 x 350 x 44 mm (WxDxH)
Weight: Approx. 4.6 kg
Ideal Use Cases:
Office networks with a need for PoE-powered devices
Businesses requiring high-speed uplinks for servers or storage
Environments needing secure and segmented traffic via VLANs and routing
Network backbones with growing data demands
The Cisco CBS350-24P-4X is a powerful and versatile managed switch that delivers enterprise-grade functionality in a cost-effective, user-friendly package—ideal for businesses seeking to build a reliable, secure, and scalable network infrastructure.
