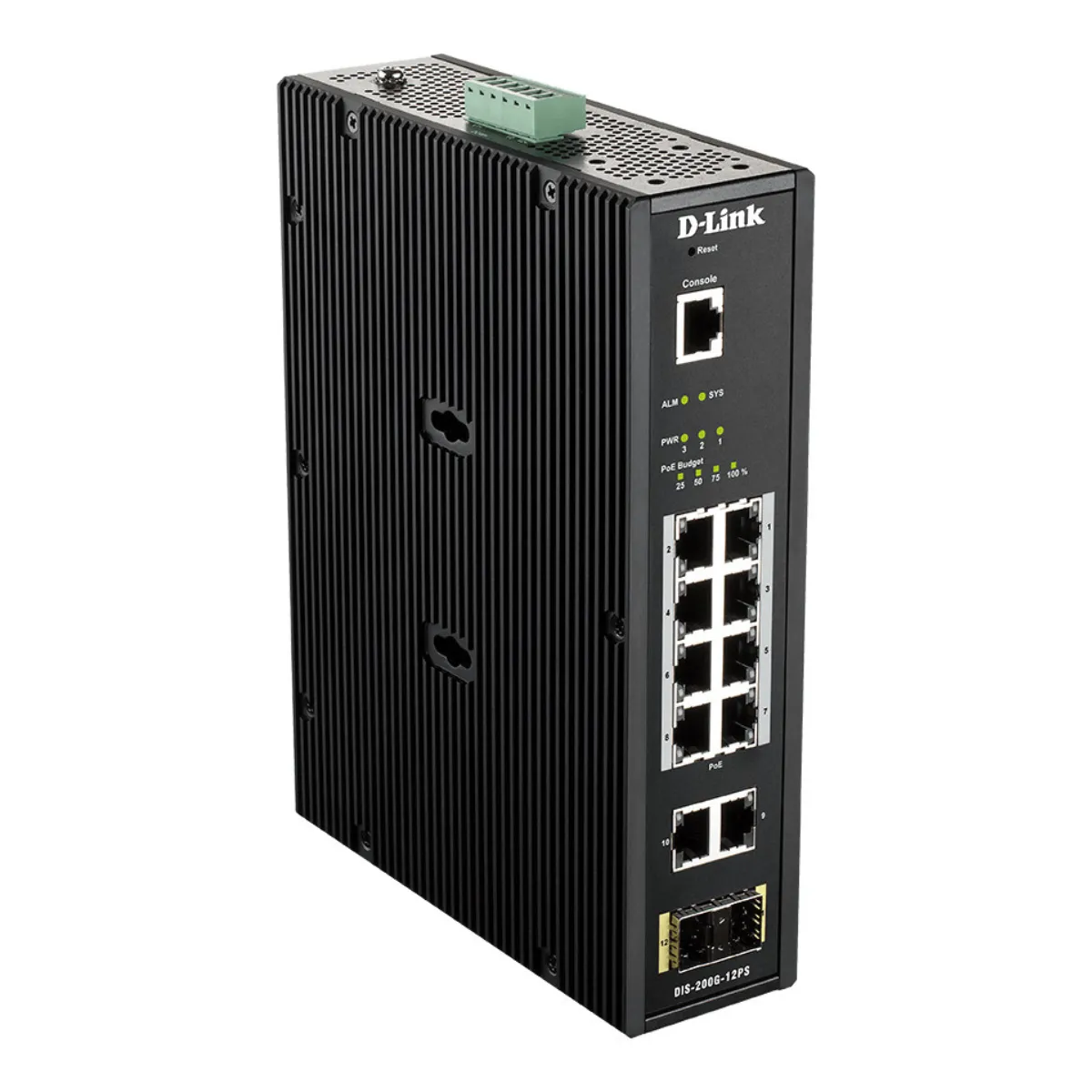

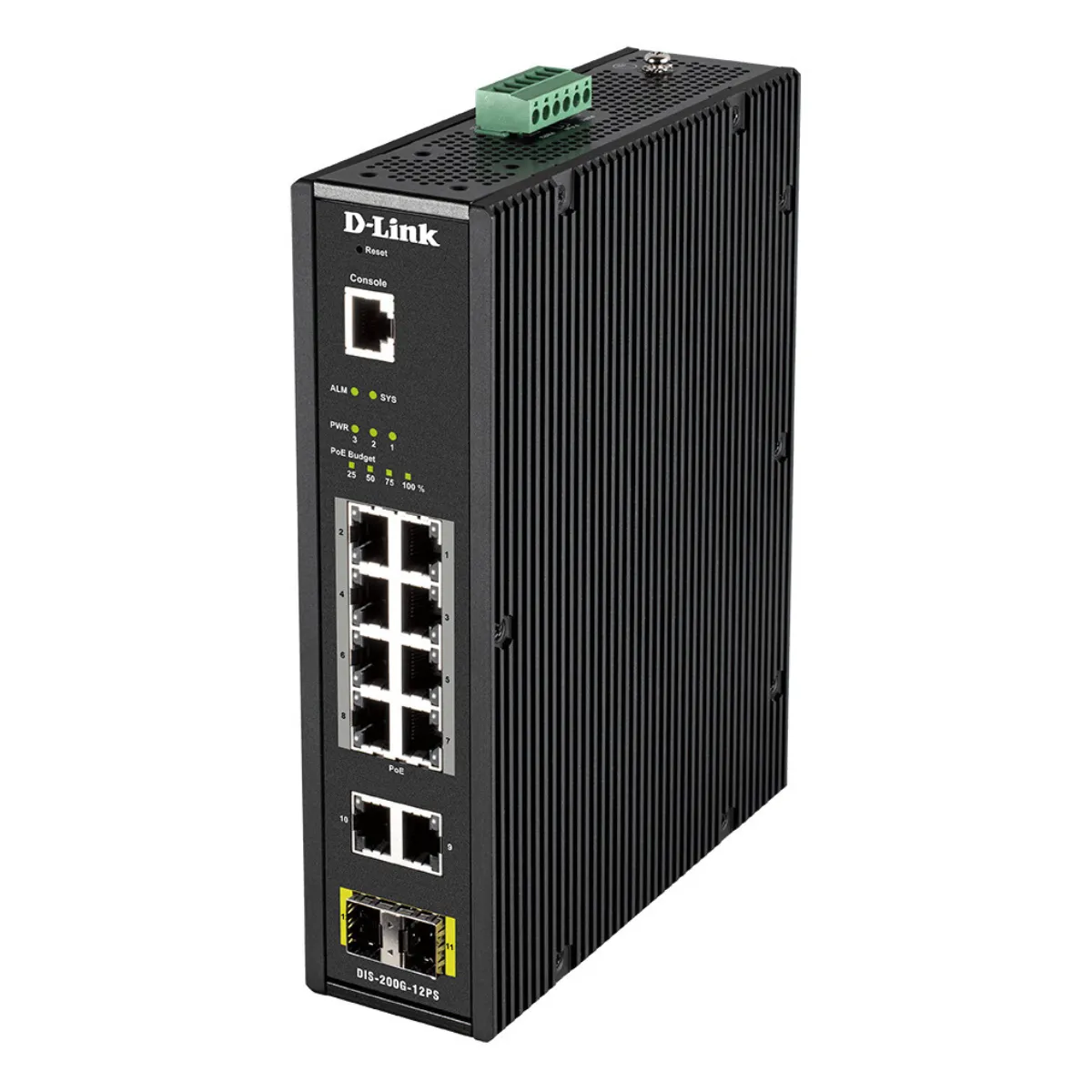

The D-Link DIS-200G-12PS is a rugged Layer 2 Gigabit industrial smart managed PoE switch designed to deliver resilient network connectivity and robust power delivery for industrial, surveillance, and harsh‑environment applications. Equipped with eight 10/100/1000 BASE‑T PoE+ ports, two additional Gigabit Ethernet ports, and two SFP fiber uplink ports, this switch can support a wide range of network devices and layouts with high‑speed performance. With a total PoE power budget of 240 W, the D-Link DIS-200G-12PS efficiently powers multiple PoE devices such as IP cameras, wireless access points, and VoIP phones without the need for separate power supplies, simplifying deployments and reducing cable clutter. Its industrial‑grade IP30‑rated metal casing, high electromagnetic compatibility (EMC), and fanless design make it capable of withstanding extreme temperatures and harsh conditions, ensuring long‑term reliability in outdoor cabinets, factories, and remote sites. Additionally, advanced management features including web‑based UI, industry‑standard CLI, SNMP, loopback detection, and Ethernet Ring Protection Switching (ERPS) allow for flexible configuration, traffic optimization, and rapid failover recovery for mission‑critical networks. Built‑in 6 kV surge protection on copper ports guards against electrical surges and lightning strikes, safeguarding both the switch and connected devices. Whether deployed for industrial automation, surveillance systems, or enterprise edge networks, the D-Link DIS-200G-12PS delivers powerful performance, resilient operation, and comprehensive management tools. For latest pricing and availability, check our stock. Official manufacturer specifications are available on the D‑Link site.
Key Features:
- 240 W PoE+ Power Budget: Supplies robust Power over Ethernet to up to 8 PoE devices, reducing need for separate power sources.
- 10× Gigabit Connectivity: Includes 8 PoE+ Gigabit, 2 standard Gigabit RJ45, and 2 SFP fiber ports for flexible uplink options.
- Industrial Grade Design: IP30 metal casing with fanless operation, high EMC endurance, and wide operating temperature tolerance.
- Advanced Management: Web UI, industry CLI, SNMP, VLAN, ERPS failover, loopback detection, and diagnostics tools.
- 6 kV Surge Protection: Built‑in surge and lightning protection for enhanced network resilience.
| Feature | Specification / Detail |
|---|---|
| Model | D-Link DIS-200G-12PS |
| Ports | 8 × PoE+ Gigabit RJ45, 2 × Gigabit RJ45, 2 × SFP |
| PoE Standard | IEEE 802.3af/at PoE+ |
| Total PoE Budget | 240 W |
| Switching Capacity | 24 Gbps |
| Maximum Forwarding Rate | ~17.85 Mpps |
| MAC Address Table | Up to 8K |
| Management | Web UI, CLI, SNMP, VLAN, ERPS |
| Surge Protection | 6 kV on copper ports |
| Operating Temp. | –40 °C to 65 °C |
| Housing | IP30 metal, fanless |
| Mounting | DIN rail / wall / rack |

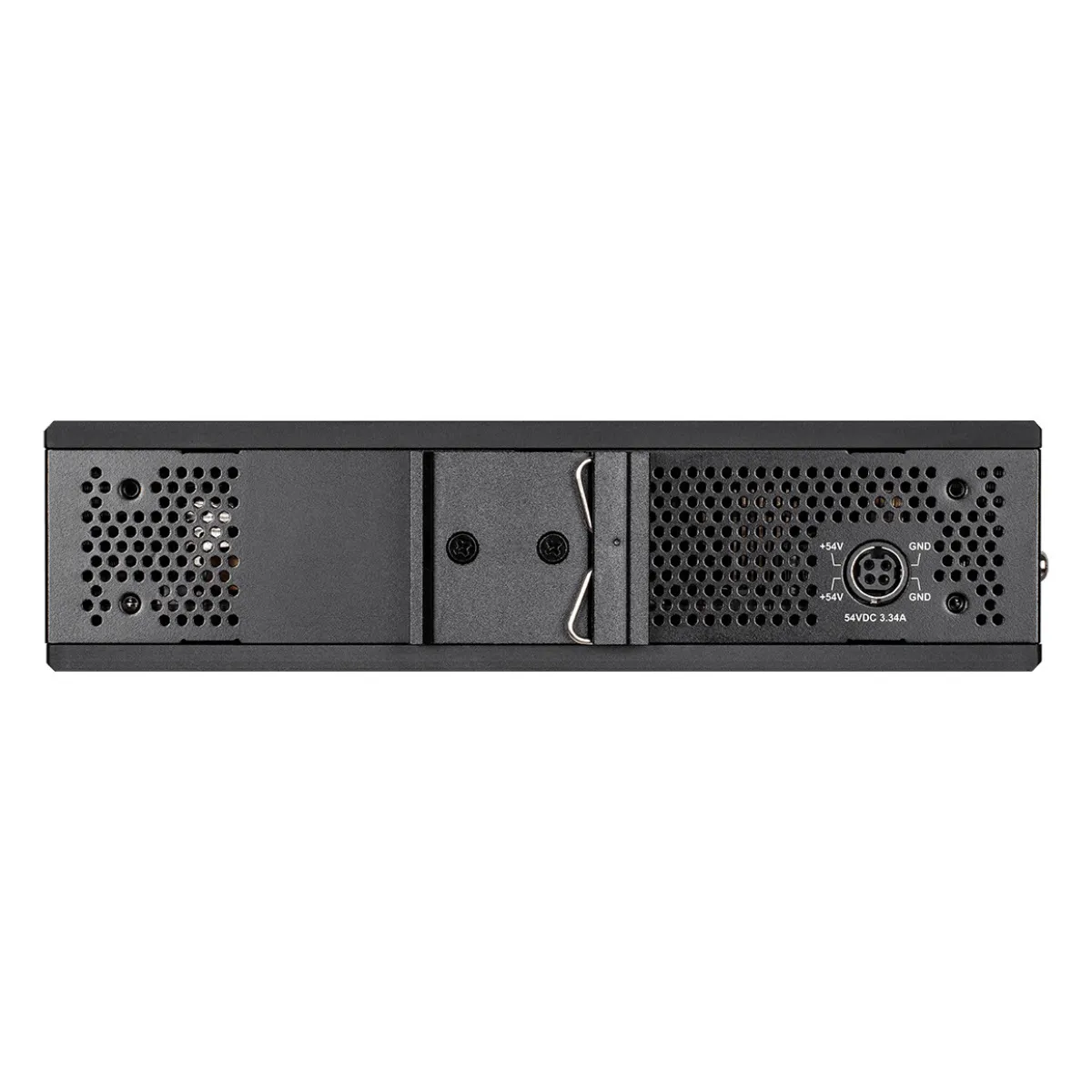

| Power Input | 48–54 V DC terminal / 54 V DC 4‑pin DIN |
| Certifications | CE, FCC, BSMI |
| Console Port | RJ‑45 |
