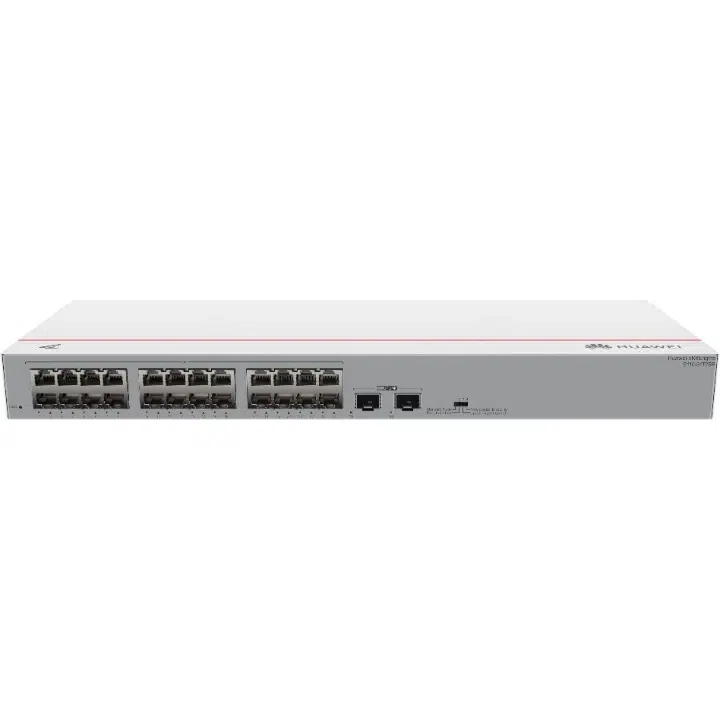

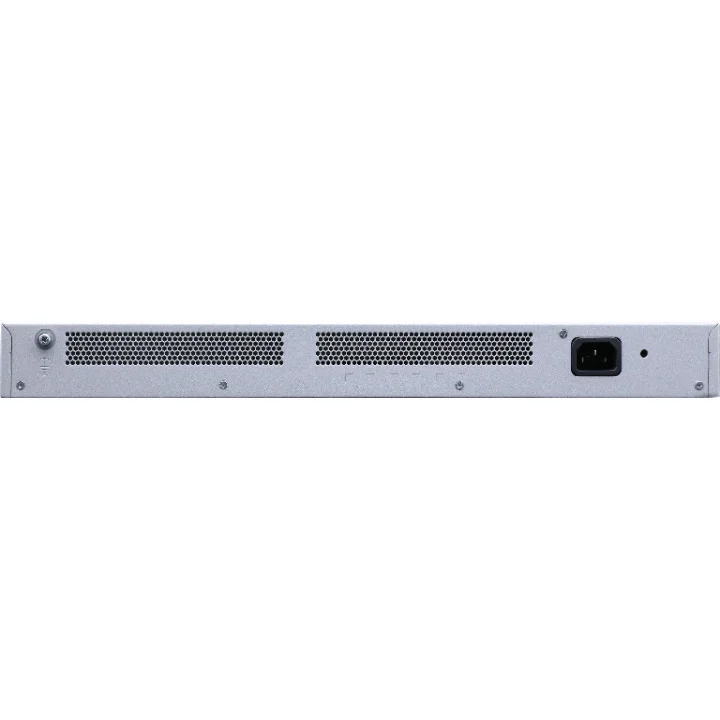

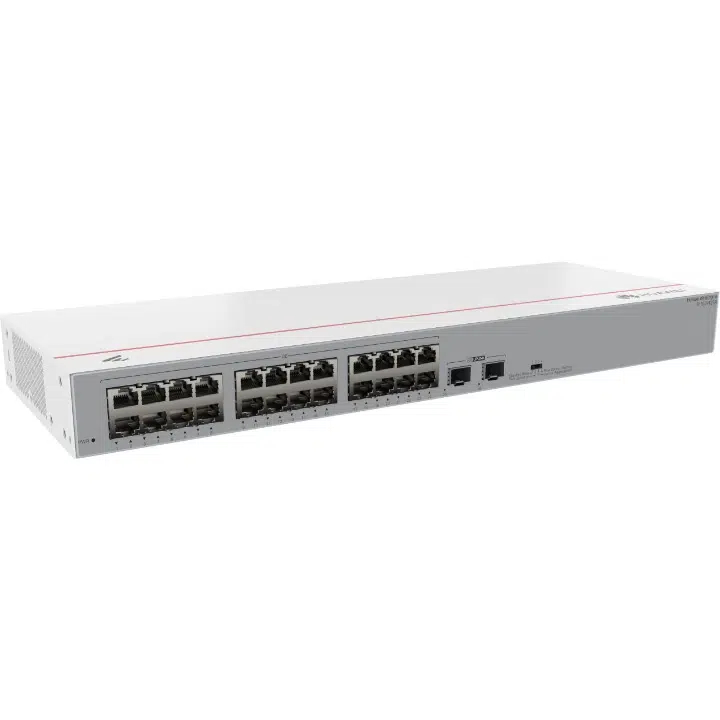

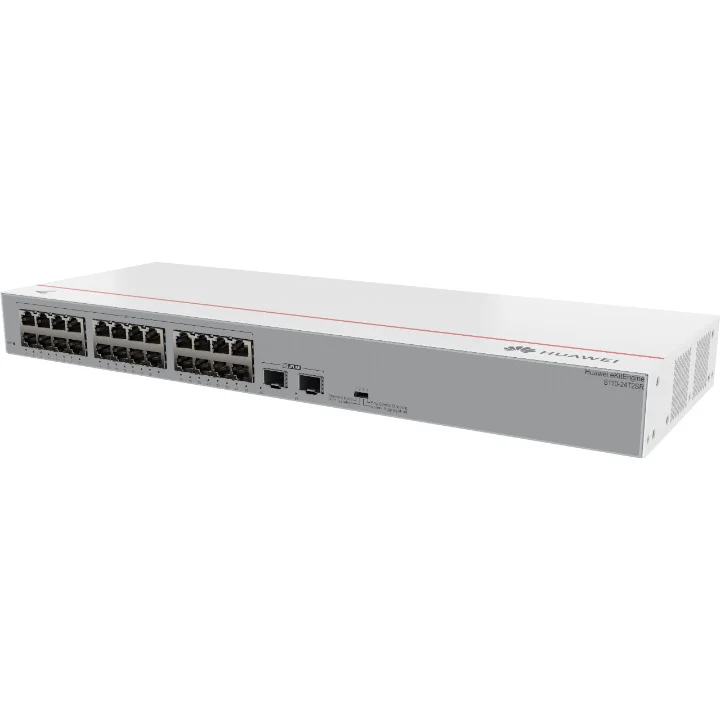

The Huawei EKit S110-24T2SR is a high-performance, reliable network switch designed for small to medium-sized businesses that require stable and efficient network connectivity. Featuring 24 Gigabit Ethernet ports and 2 SFP ports, this switch provides versatile connection options for both copper and fiber networks, enabling seamless integration into existing infrastructures.
Built with energy efficiency in mind, the S110-24T2SR minimizes power consumption without compromising performance, making it an eco-friendly choice for modern offices. Its plug-and-play setup ensures quick deployment, while advanced switching capabilities deliver smooth data transmission, low latency, and reliable performance for demanding applications.
Ideal for expanding networks, the Huawei EKit S110-24T2SR supports robust data forwarding, network segmentation, and flexible deployment options, ensuring your network can scale efficiently as your business grows. Its durable design and quality components guarantee long-lasting performance and stable operation, making it a dependable backbone for your network infrastructure.
key features
- 24 Gigabit Ethernet ports for high-speed wired connections
- 2 SFP ports for flexible fiber uplink and extended network reach
- High-performance switching with low latency and stable data transmission
- Energy-efficient design reduces power consumption
- Plug-and-play setup for easy deployment
- VLAN support for network segmentation and improved security
- Compact 1U rack-mountable design suitable for office environments
- Reliable and durable build ensures stable operation for growing networks
- Supports jumbo frames up to 9 KB for large data transfers
| Specification | Details |
|---|---|
| Model / Part Number | S110‑24T2SR (Part No: 98012196) |
| Switch Type | Unmanaged |
| Ports | 24 × 10/100/1000BASE‑T (RJ‑45) downlink 2 × GE SFP uplink (100/1000 Mbps) |
| Switching Capacity | 52 Gbps |
| Packet Forwarding Rate | ≈ 38.69 Mpps |
| MAC Address Table Size | 8K entries |
| Working Modes | Four: Standard, Port Isolation, Uplink Aggregation (bonding), Flow Control Disabling |
| Energy Features | Supports Energy Efficient Ethernet (IEEE 802.3az) |
| Power | AC 100–240 V, 50/60 Hz Static consumption: ~5 W Typical: ~16 W, Max: ~17 W |
| Surge Protection | Ethernet ±1 kV, Power ±6 kV |
| Thermal / Cooling | Fanless, natural (passive) cooling |
| Operating Temperature | 0°C to 40°C Altitude: specified up to 1,800 m (above that, max temp reduces) |
| Storage Temperature | –40°C to +70°C |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Dimensions (H × W × D) | 43.6 mm × 442.0 mm × 160.0 mm (basic) Max depth (with rear protrusions): 167.0 mm |
| Chassis / Form Factor | 1 U, Metal chassis; Rack‑mountable, desk, or wall mount. |
| Weight | Without packaging: ~1.8 kg With packaging: ~2.3 kg |
| MTBF / Reliability | MTBF ~76.1 years (per some sources) MTTR ~2 hours |
| Ingress Protection | IP20 (i.e., basic protection for indoor use) |
| Certifications | EMC, Safety (as per vendor) |
| Surge Modes / Protection | Service port ±1 kV, Power port ±6 kV |
| Warranty | 1 years |
| Physical Design | Crystal-like “diamond cut” aesthetic design (per eKitEngine series) |
