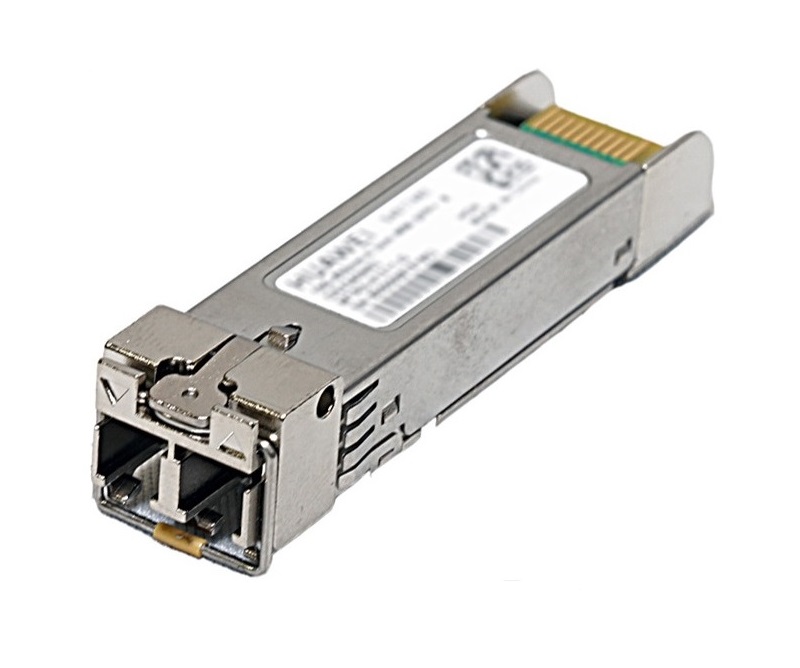

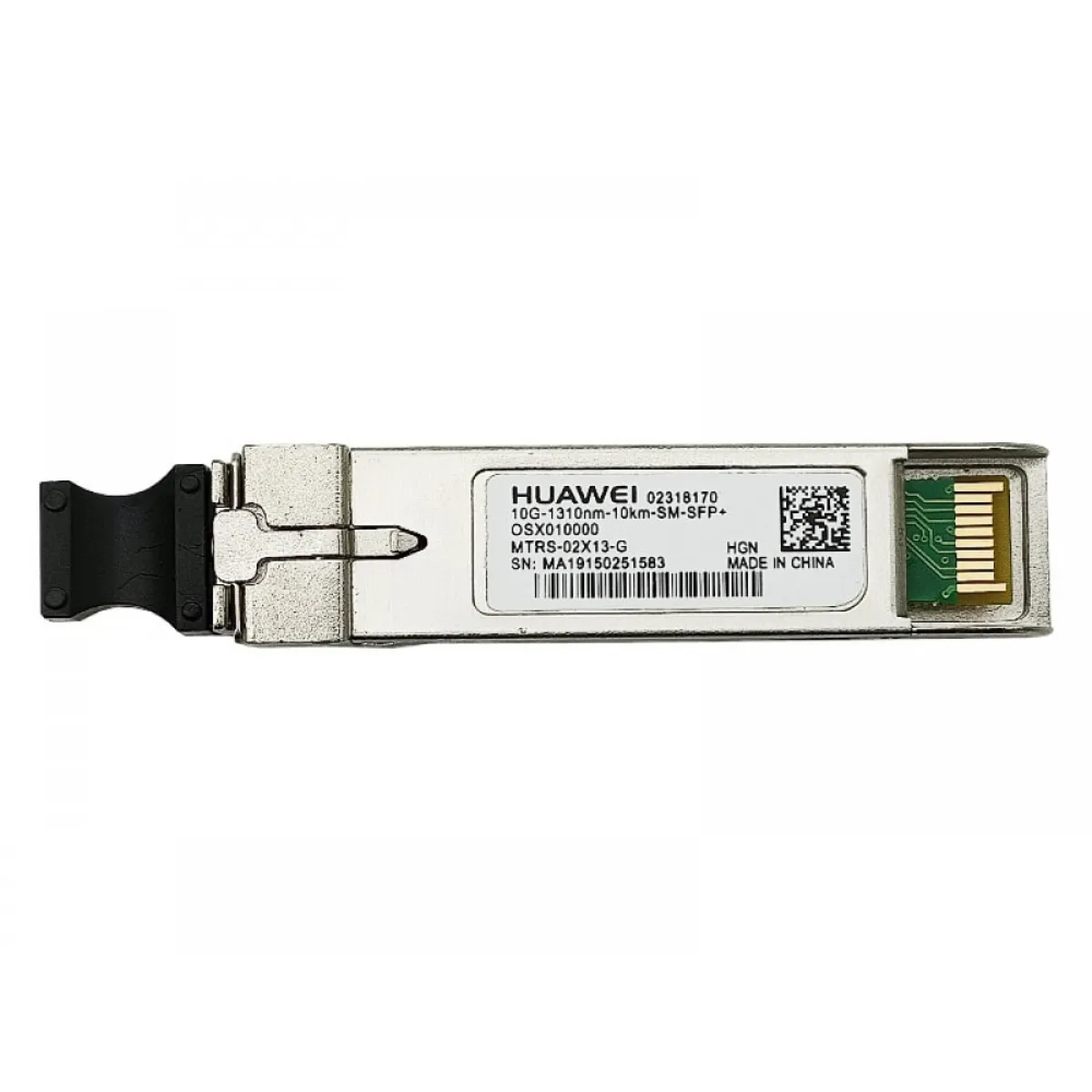

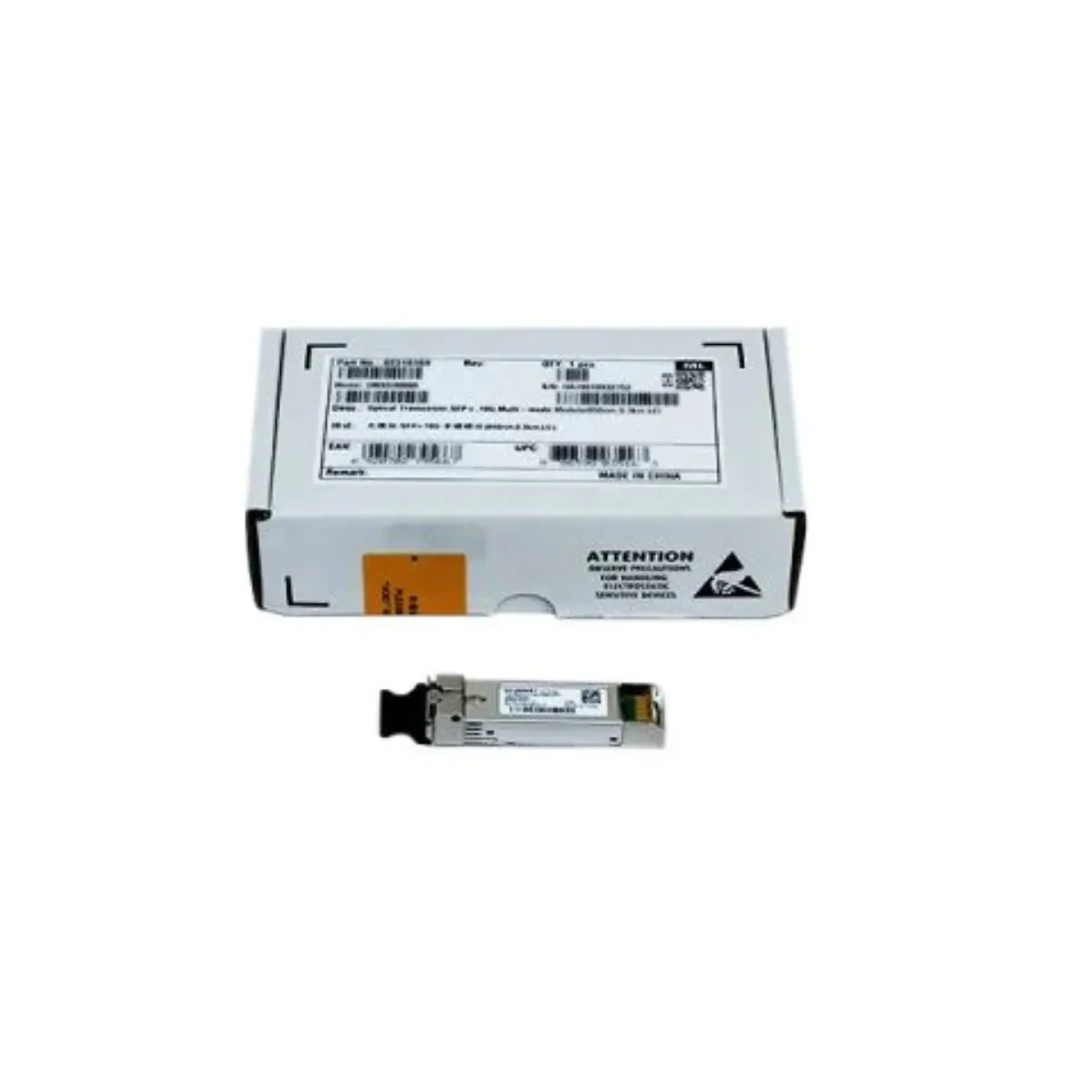

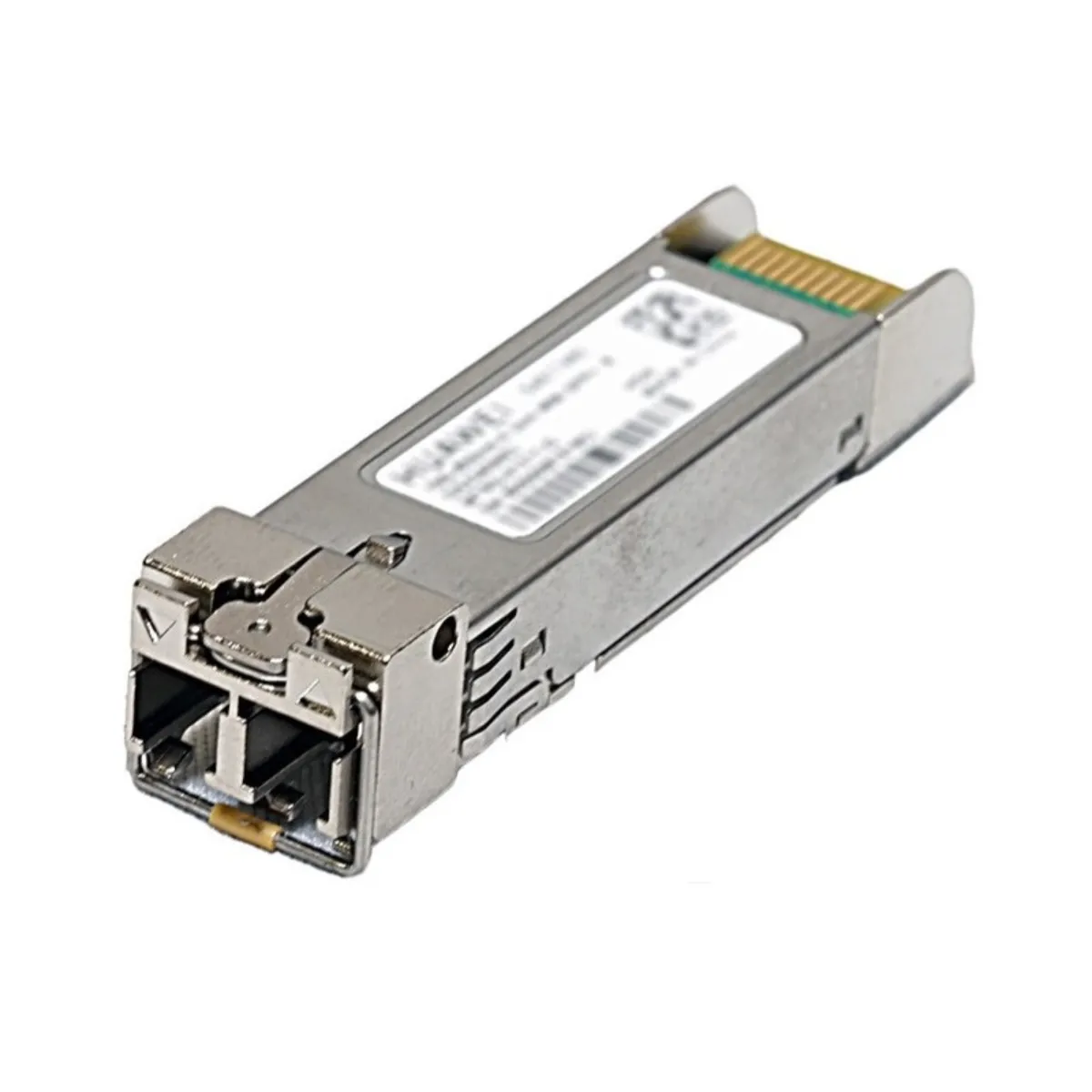

The Huawei / OSX010000 / Optical Transceiver SFP+ 10G Single-mode Module (1310nm 10km LC) is a high-performance SFP+ optical transceiver designed for long-distance, high-speed single-mode fiber networks, making it ideal for enterprise, data center, and telecom backbone applications. This SFP+ module supports a full 10 Gigabit per second transmission rate over single-mode fiber up to 10 km, using the standardized 10GBASE-LR optical interface and a reliable 1310 nm wavelength source that provides stable connectivity across metro and campus links. It features a compact LC duplex connector and complies with IEEE 802.3ae and Multi-Source Agreement (MSA) specifications for broad interoperability with Huawei switching and routing equipment, ensuring seamless integration and enhanced network performance. Built-in Digital Diagnostic Monitoring (DDM) capabilities provide real-time insight into optical power, temperature, voltage, and signal integrity to help maintain peak performance and reduce troubleshooting time. The transceiver operates within a commercial temperature range of 0 °C to 70 °C and delivers a balanced combination of transmit power, receiver sensitivity, and extinction ratio to achieve reliable signal quality at extended distances. Compared to generic or lower-grade modules, the Huawei / OSX010000 / Optical Transceiver SFP+ 10G Single-mode Module (1310nm 10km LC) offers superior quality assurance and optimized performance for demanding 10G networks. Whether you’re upgrading your backbone fiber links or expanding 10G-capable fiber infrastructure, this module delivers consistent, high-speed transmission and robust optical performance that supports modern network demands. For compatible devices and support information, check our stock (/shop) and visit the official Huawei product documentation.
Key Features:
- SFP+ optical transceiver module with 10 Gbps data rate
- Designed for single-mode fiber (SMF) connections
- Hot-pluggable design for easy installation and maintenance
- Long-distance transmission support for stable connectivity
- Compact, durable, and energy-efficient build
- Compatible with Huawei switches, routers, and network devices
- Low latency and optimized performance for data-intensive applications
| Feature | Specification |
|---|---|
| Model | Huawei OSX010000 |
| Form Factor | SFP+ (Small Form-Factor Pluggable Plus) |
| Data Rate | 10 Gbps |
| Fiber Type | Single-mode fiber (SMF) |
| Wavelength | 1310 nm |
| Maximum Transmission Distance | Up to 10 km |
| Connector Type | LC duplex |
| Transmission Media | Single-mode fiber cable |
| Interface | SFP+ 10G electrical interface |
| Operating Temperature | 0°C to 70°C (standard commercial) |
| Power Consumption | Typically ≤ 1 W |
| Digital Diagnostic Monitoring (DDM) | Supported |
| Compliance Standards | IEEE 802.3ae 10GBASE-LR, RoHS compliant |
| Application | Data center, enterprise network, metro and campus networks |
| Compatibility | Compatible with Huawei 10G SFP+ ports and standard SFP+ switches |
