The MERCUSYS / MA80XE / AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter is a high-performance network upgrade designed to bring next-generation wireless connectivity to desktop PCs with ease. This adapter supports dual-band Wi-Fi 6 technology that delivers combined wireless speeds up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, ensuring fast downloads and responsive performance for streaming, gaming, and productivity tasks. Furthermore, the included Bluetooth 5.3 support adds advanced peripheral connectivity with increased range and stability when connecting keyboards, mice, headsets, and other wireless accessories. With features such as MU-MIMO and OFDMA, this PCIe adapter efficiently distributes bandwidth across devices to reduce congestion and latency, which enhances the experience for multiple users or IoT devices connected simultaneously. Additionally, robust WPA3 security is built in to protect your wireless communications from external threats and safeguard private data, while backward compatibility with older Wi-Fi standards (802.11ax/ac/a/b/g/n) ensures seamless integration with existing routers and access points. Built with two high-gain omnidirectional antennas, this adapter extends signal coverage, helping maintain a strong link even at greater distances from your router. Despite its advanced capabilities, the MERCUSYS / MA80XE / AX3000 Wi-Fi 6 Bluetooth 5.3 PCIe Adapter is simple to install into an available PCIe slot and is fully compatible with current Windows 10 and 11 (64-bit) systems. Whether you’re upgrading an older desktop or building a new system that demands reliable wireless networking performance, this adapter offers a compelling blend of speed, connectivity, and modern wireless standards. Additionally, you can check our stock to see current availability and add this high-speed adapter to your PC network setup today.
Key Features:
- Dual Band Speed — Speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)1
- Better Experience — More devices, lower latency and less congestion2
- Wider Signal Coverage — Two high-performance antennas
- Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety4

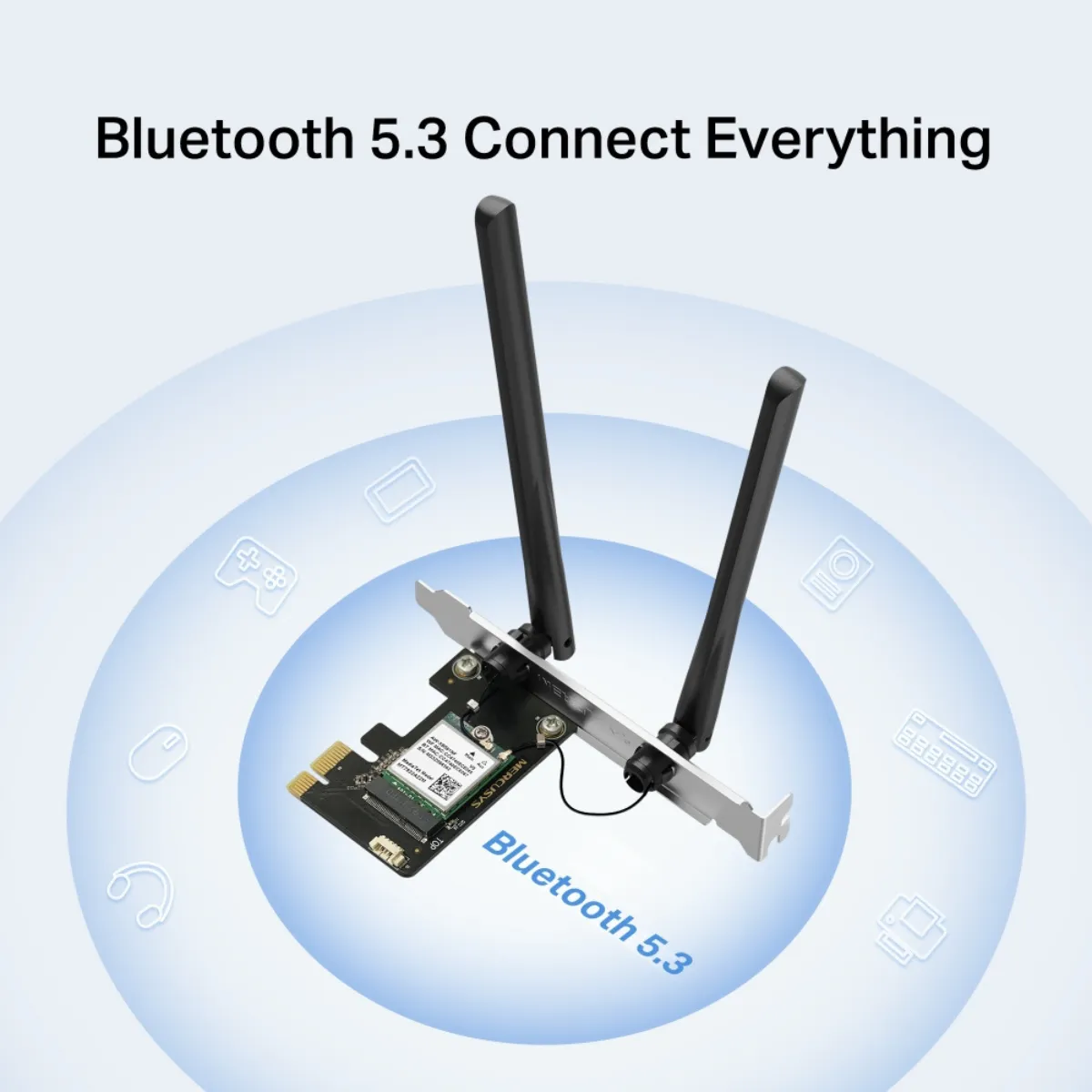

- Bluetooth 5.3 — The latest Bluetooth technology achieves faster speeds and broader coverage6
- Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards
- Windows Compatible — Supported operating system: Windows 10, 11 (64 bit)
| Feature | Specification / Detail |
|---|---|
| Wireless Standard | IEEE 802.11 a/ac/ax 5 GHz, IEEE 802.11 b/g/n/ax 2.4 GHz |
| Maximum Wi-Fi Speeds | 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz) |
| Bluetooth Version | Bluetooth 5.3 |
| Security Protocol | WPA-PSK / WPA2-PSK / WPA3-SAE |
| Interface | PCIe Adapter (PCIe x1 form factor) |

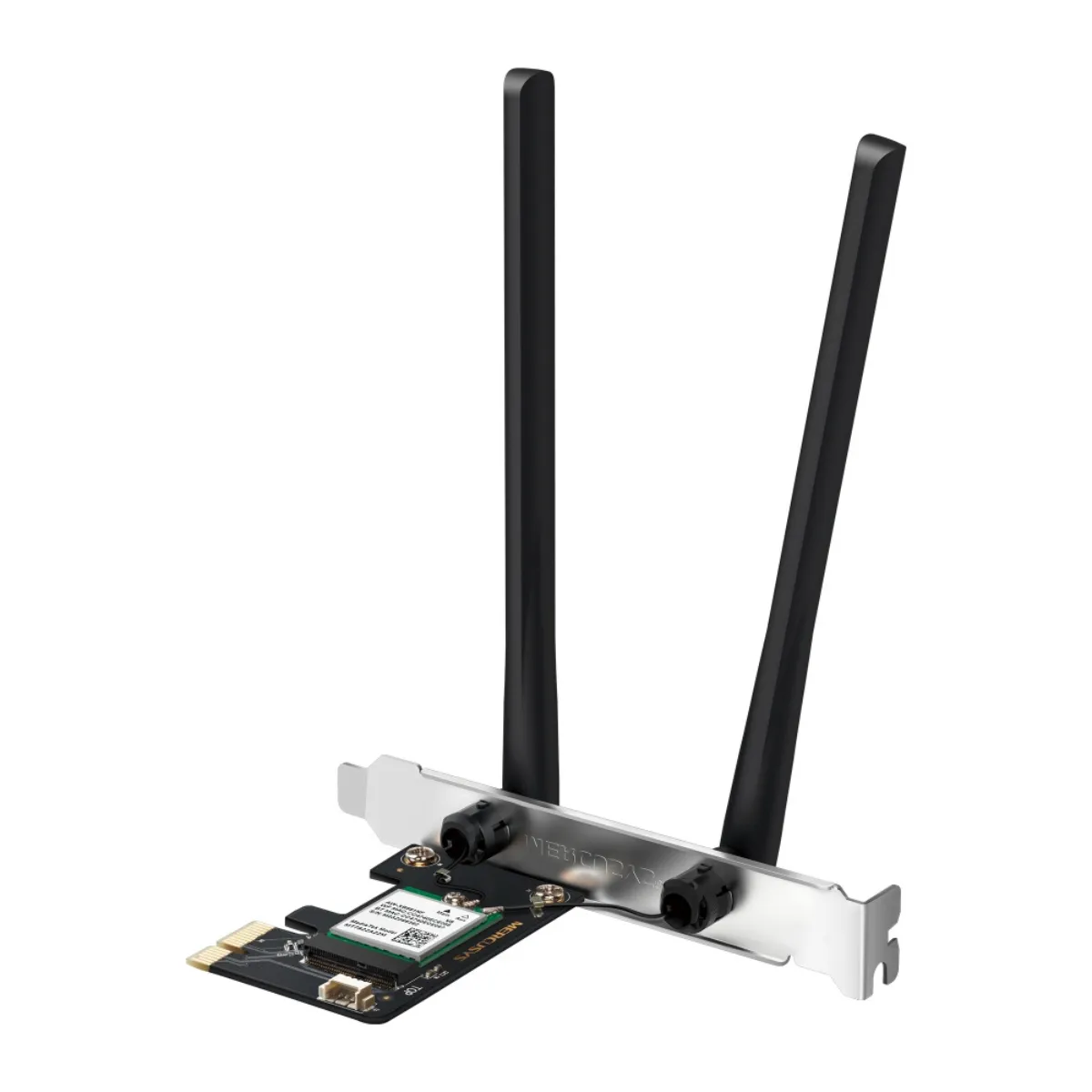

| Antenna Type | 2× Fixed High-Performance Omni-Directional Antennas |
| Operating Systems | Windows 10 & Windows 11 (64-bit) |
| Dimensions | 8.9 × 4.8 × 0.85 in (226.3 × 120.8 × 21.5 mm) |
| Package Contents | Adapter, Bluetooth Header Cable, Quick Guide, Resource CD |
