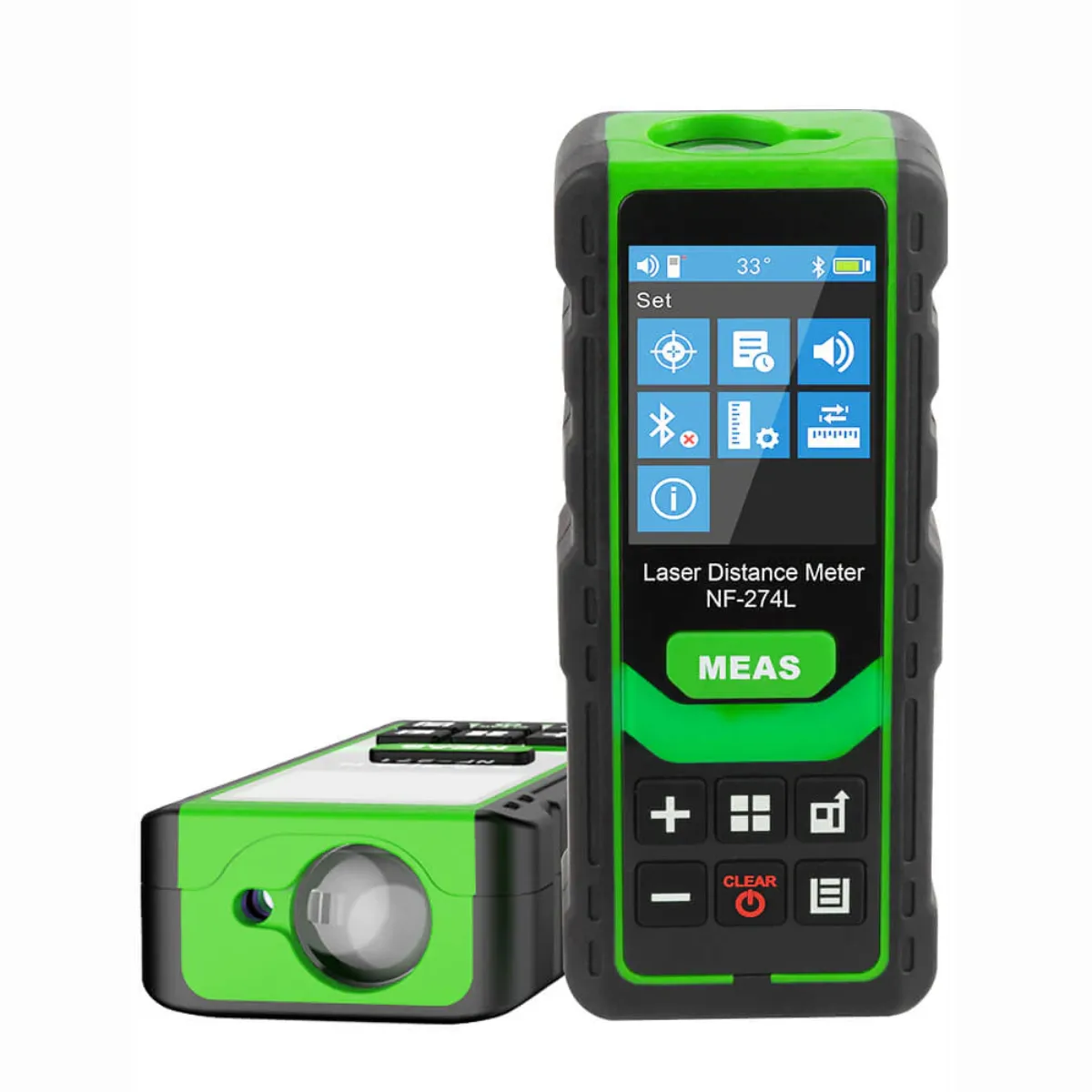

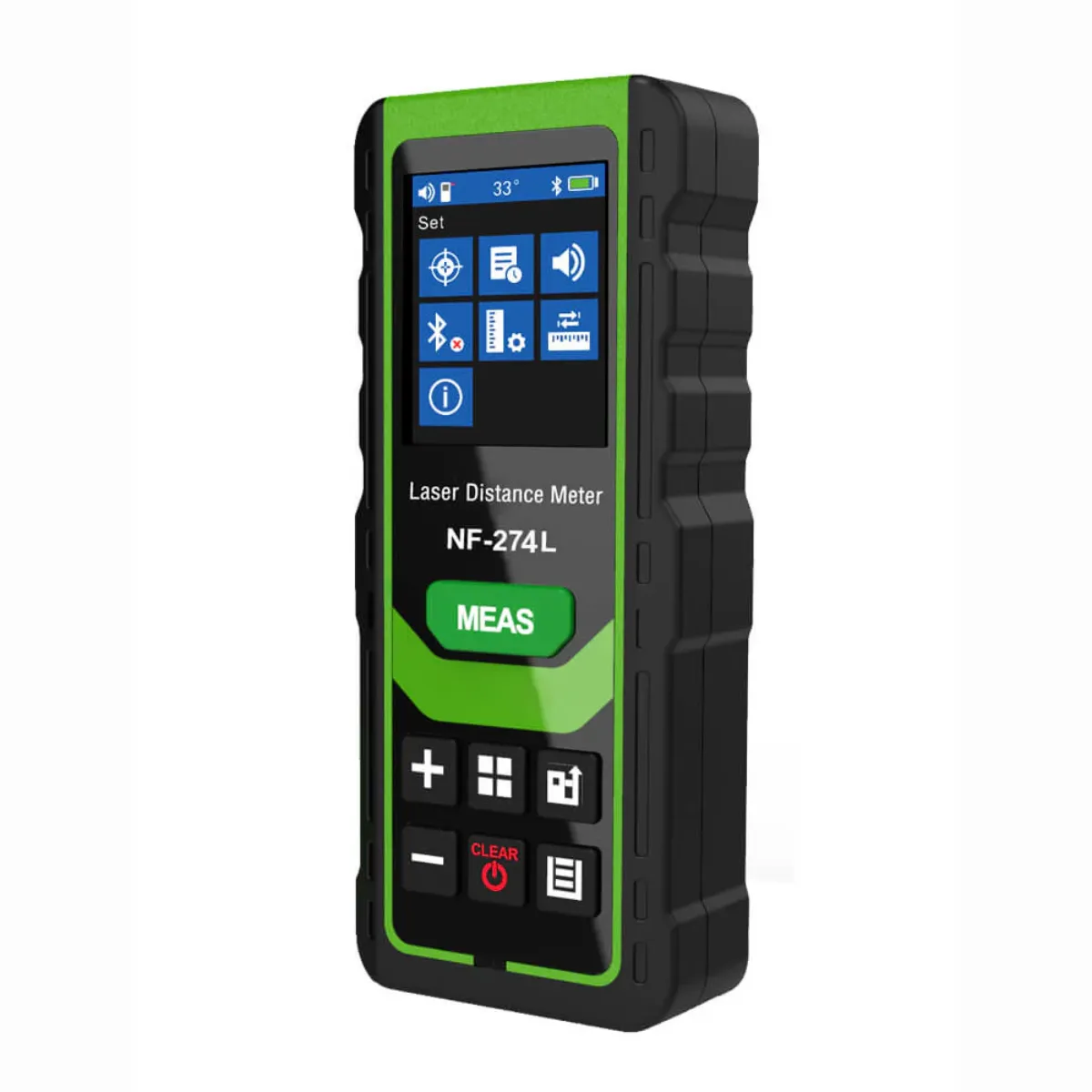

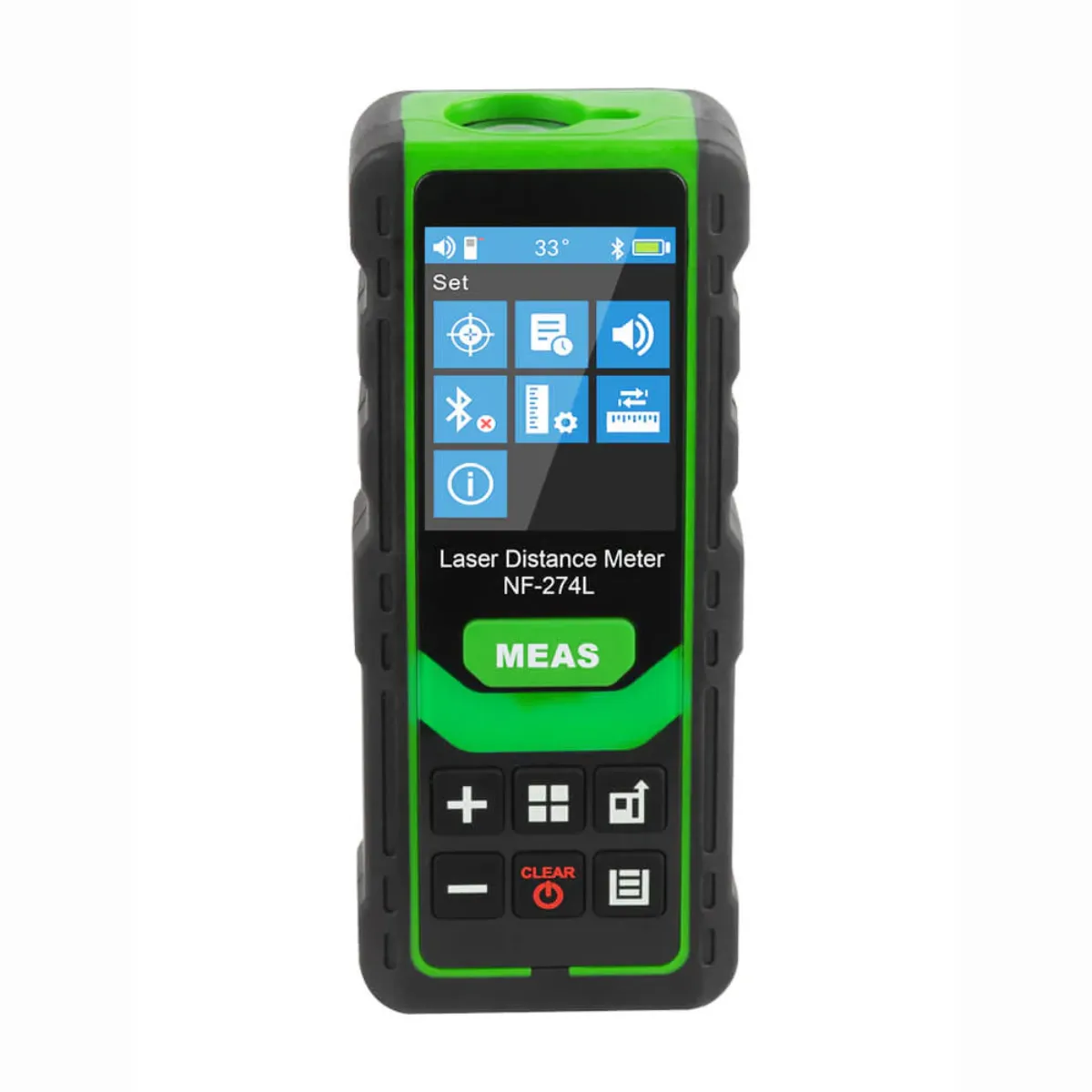

The Noyafa NF-274L-100 Laser Distance Meter is a professional-grade, multi-function measuring tool designed for high-precision field tasks. It measures up to 100 meters with an impressive accuracy of 1.5 mm, utilizing an advanced optical lens to enhance reflected light reception. Furthermore, the green laser technology used in this model provides superior visibility in daylight compared to traditional red lasers. To complement your measurement toolkit, you can explore our professional testers for more advanced diagnostic equipment.
11 Measurement Modes in the Noyafa NF-274L-100 Laser Distance Meter
The Noyafa NF-274L-100 Laser Distance Meter supports a wide array of modes, including single, continuous, area, volume, and Pythagorean indirect measurements. Additionally, it features point-to-point and triangle area calculations, giving engineers and surveyors a complete toolkit in one compact device. The integrated add and subtract function allows for direct calculations on-site, saving significant time on manual record-keeping. Consequently, complex surveying tasks that once required multiple tools can now be completed in seconds. For official calibration guides and software, visit the Noyafa website.
Smart Connectivity and Rugged Build
Moreover, the Noyafa NF-274L-100 Laser Distance Meter connects to Android smartphones via Bluetooth, enabling seamless data upload to a mobile app for bulk export and analysis. The device stores up to 100 data sets and features an IP54 rating, making it resistant to dust and water splashes on rugged construction sites. Therefore, the 750 mAh rechargeable lithium battery and FSTN backlit display ensure you can work through long shifts in any lighting condition. Specifically, the benchmark adjustment feature allows you to toggle measurements from the lens or the base for maximum precision. Finally, this unit delivers the smart connectivity and versatility required for modern engineering and network installations.
Key Features:
- Green Laser — 100 m Range, ±1.5 mm Accuracy — Visible green laser delivers superior daylight performance and pinpoint accuracy up to 100 m with just 1.5 mm measurement error
- 11 Measurement Modes — Distance, area, volume, continuous, Pythagorean, count-down, point-to-point, triangle area, addition/subtraction, horizontal, and vertical measurement modes in one device
- Bluetooth + Mobile App (Android) — Connects wirelessly to Android smartphones for data upload, bulk export, and full analysis via the Noyafa mobile app
- 100 Data Sets Storage + Backlit FSTN Display — Stores up to 100 readings for on-site comparison, displayed clearly in m/ft/in on a backlit FSTN screen in any lighting condition
- IP54 Rated + Rechargeable 750 mAh Battery — Dust and splash resistant rubber casing with a 750 mAh Li-battery for extended field use and automatic power-saving shutdown
| Feature | Specification / Detail |
|---|---|
| Brand | Noyafa |
| Model Number | NF-274L-100 |
| Measurement Range | 0.05 m to 100 m (0.16 ft to 330 ft) |
| Accuracy | ±1.5 mm |
| Laser Colour | Green |
| Laser Class | Class II |
| Measurement Modes | 11 modes — Distance, Area, Volume, Continuous, Pythagorean, Count-down, Point-to-Point, Triangle Area, H/V Auto, Add/Subtract |
| Single / Continuous | Yes — both supported |
| Min / Max Measurement | Yes |
| Addition / Subtraction | Yes |
| Unit Switch | m / ft / in / ft+in |

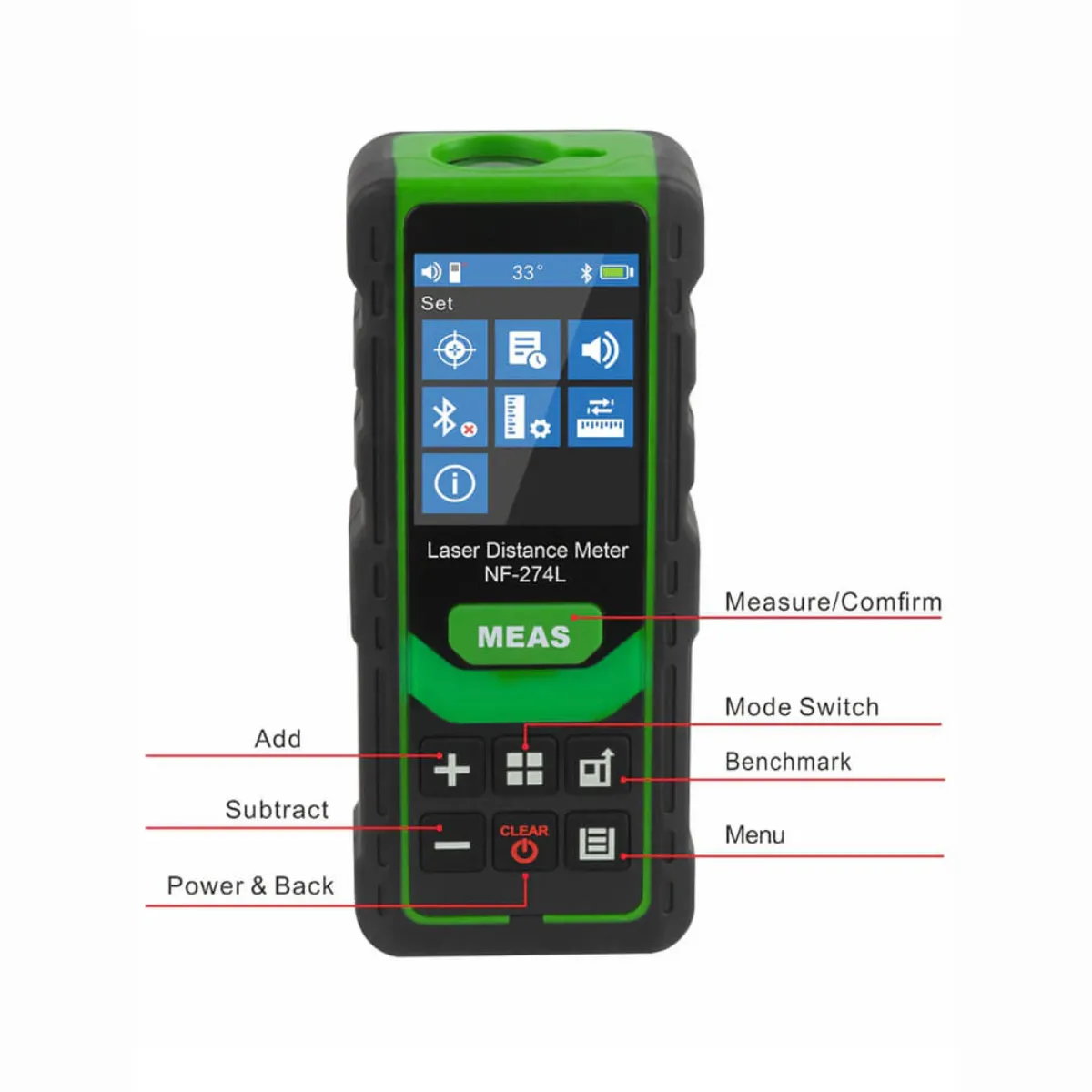

| Benchmark Switch | Yes — lens or bottom of device |
| Bluetooth | Yes — Android only |
| Mobile App | Yes — data upload & export |
| Data Storage | Up to 100 data sets |
| Display | Backlit FSTN graphic screen |
| Voice Broadcast | Yes (can be disabled) |

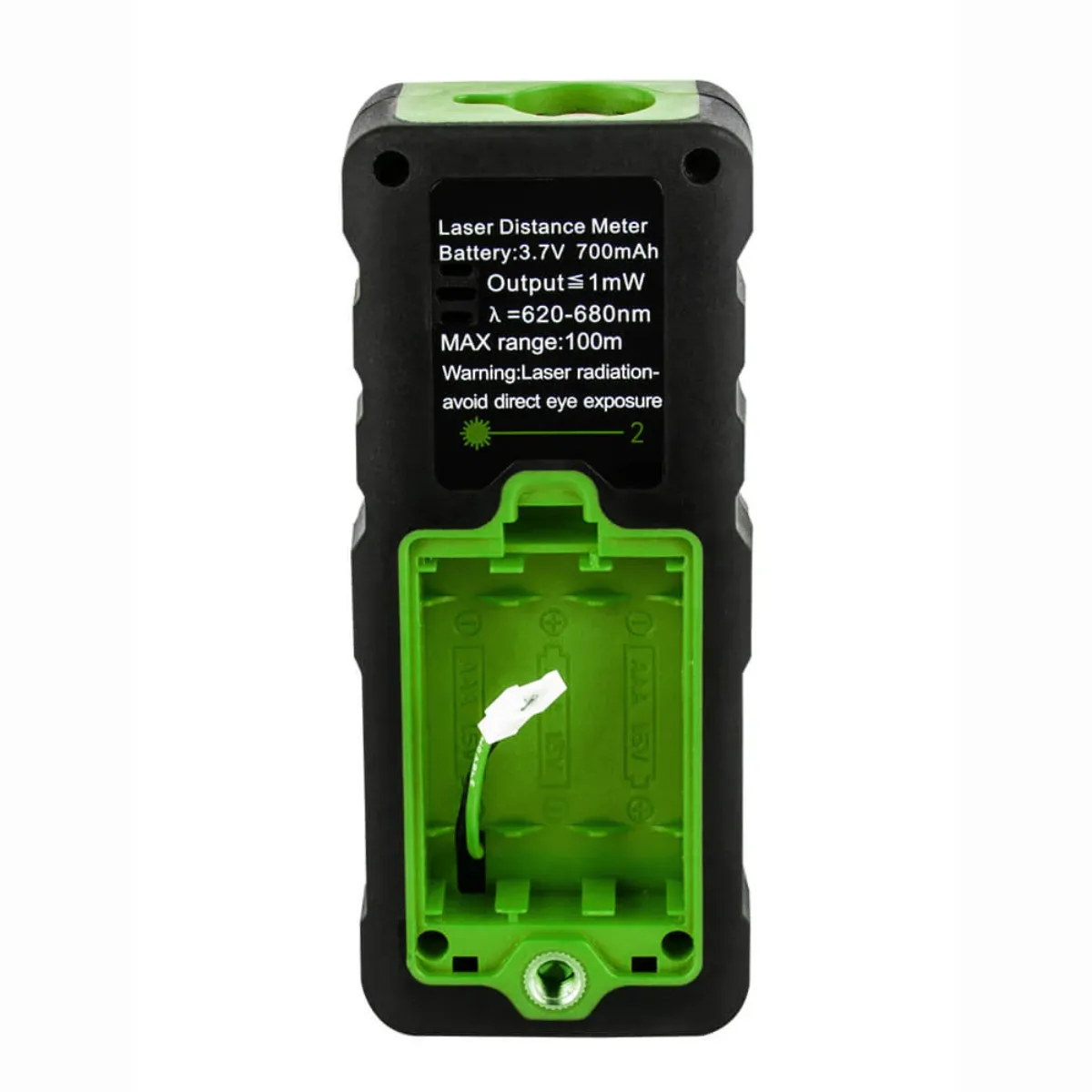

| Power Supply | 750 mAh rechargeable Li-battery |
| Auto Power Off | Laser: 30 seconds / Device: 2 minutes |
| IP Protection | IP54 (dust & splash resistant) |
| Casing | Rubber-coated ABS — ergonomic grip |
| Operating Temperature | 0°C to +40°C |
| Hint Tone | Yes |
