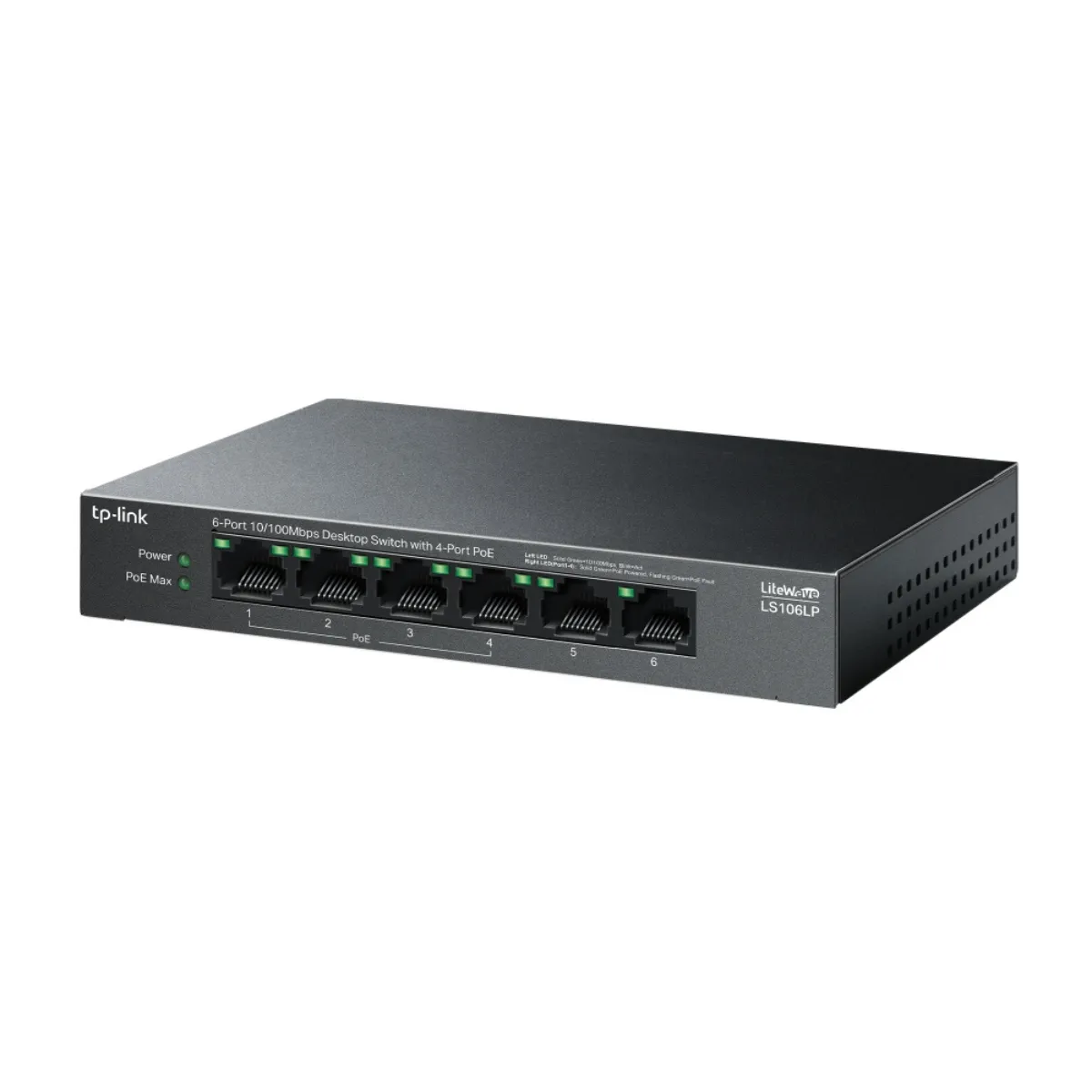

The TP-Link LS106LP 6-Port 10/100 Desktop Switch is a reliable networking solution designed for small offices, home networks, and PoE-enabled devices. Featuring 6 Fast Ethernet ports, including 4 PoE ports with a total power budget of 41W, this switch allows you to conveniently power IP cameras, VoIP phones, wireless access points, and other network devices directly through Ethernet cables. Its long-range PoE support up to 250 meters makes it ideal for extending your network without additional wiring or repeaters.
With Fast Ethernet speeds of 10/100 Mbps, the LS106LP ensures smooth data transfer for routine network tasks such as video streaming, VoIP communications, and file sharing. The switch supports IEEE 802.3af PoE standards, guaranteeing compatibility with a wide range of devices while simplifying network deployment.
Designed with plug-and-play simplicity, the LS106LP requires no configuration, making it perfect for users of all technical levels. LED indicators provide real-time information for power, PoE, and link/activity on each port, allowing for easy monitoring and troubleshooting.
Energy efficiency is built into the LS106LP with TP-Link Green Technology, which reduces power consumption based on cable length and port activity, helping lower energy costs while maintaining high performance. Its compact desktop design fits neatly on a desk or shelf, providing a flexible networking solution without occupying much space.
Whether you are connecting IP cameras for security, VoIP phones for communication, or additional network devices, the TP-Link LS106LP 6-Port Desktop Switch provides a cost-effective, high-performance solution with extended PoE range, reliable connectivity, and easy installation for modern networking needs.
Key Features:
- 6 Fast Ethernet ports for reliable 10/100 Mbps connectivity
- 4 PoE ports with a total power budget of 41W
- Supports long-range PoE up to 250 meters
- IEEE 802.3af PoE standard compatibility
- Plug-and-play desktop installation for easy setup

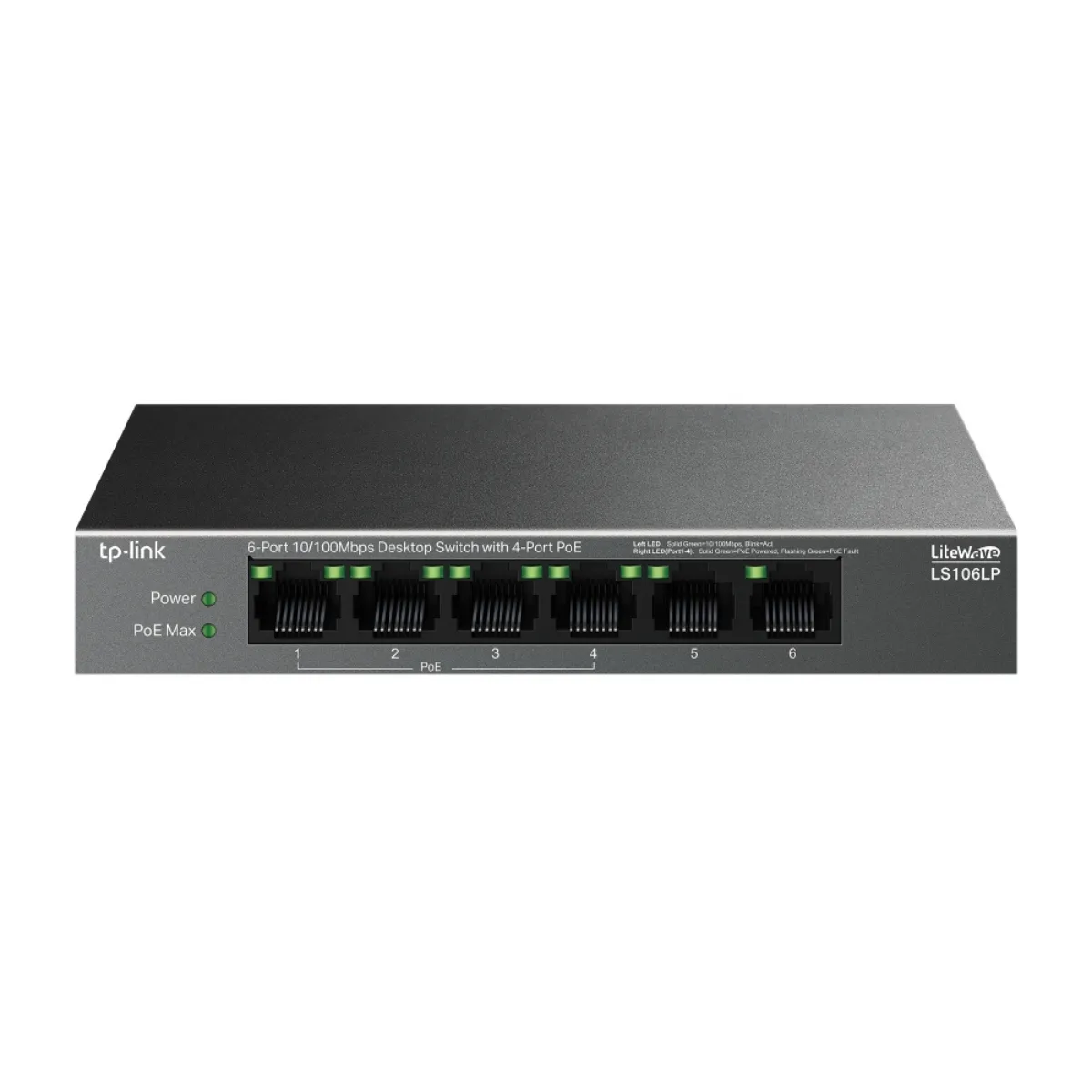

- LED indicators for power, PoE, and link/activity monitoring
- Energy-efficient design with TP-Link Green Technology
- Compact and flexible desktop form factor
| Specification | Details |
|---|---|
| Model | LS106LP |
| Product Type | Desktop Switch |
| Ports | 6 Fast Ethernet Ports (10/100 Mbps) |
| PoE Ports | 4 Ports |
| Total PoE Power | 41 W |
| PoE Standard | IEEE 802.3af |
| PoE Range | Up to 250 meters |
| Switching Capacity | 1.2 Gbps |
| Forwarding Rate | 0.89 Mpps |
| Auto-Negotiation | Yes, for all ports |
| Plug & Play | Yes |
| LED Indicators | Power, PoE, Link/Activity for each port |
| Energy-Efficient | Yes (TP-Link Green Technology) |
| Mounting | Desktop |
| Dimensions (WxDxH) | 210 × 120 × 35 mm |
| Weight | 0.78 kg |
| Use Case | Small office, home network, IP cameras, VoIP phones |
