Archer VR300 is compatible with several DSL standards (VDSL2 including profile 17a, ADSL, ADSL2, ADSL2+, etc.), thus offering flexibility depending on what the ISP provides. It also supports newer DSL features like vectoring (G.vector) and G.INP, which help to improve stability and reduce errors on lines.

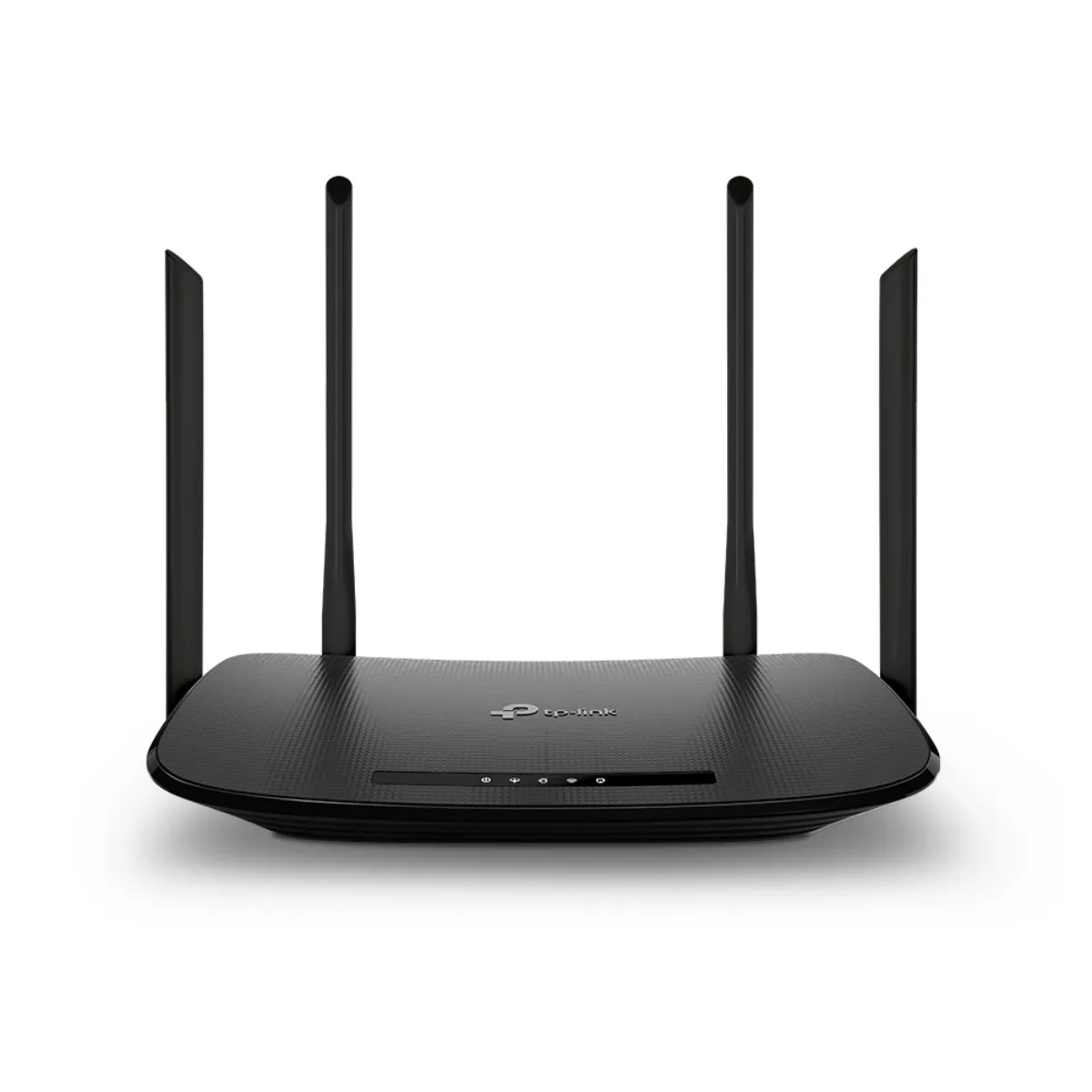

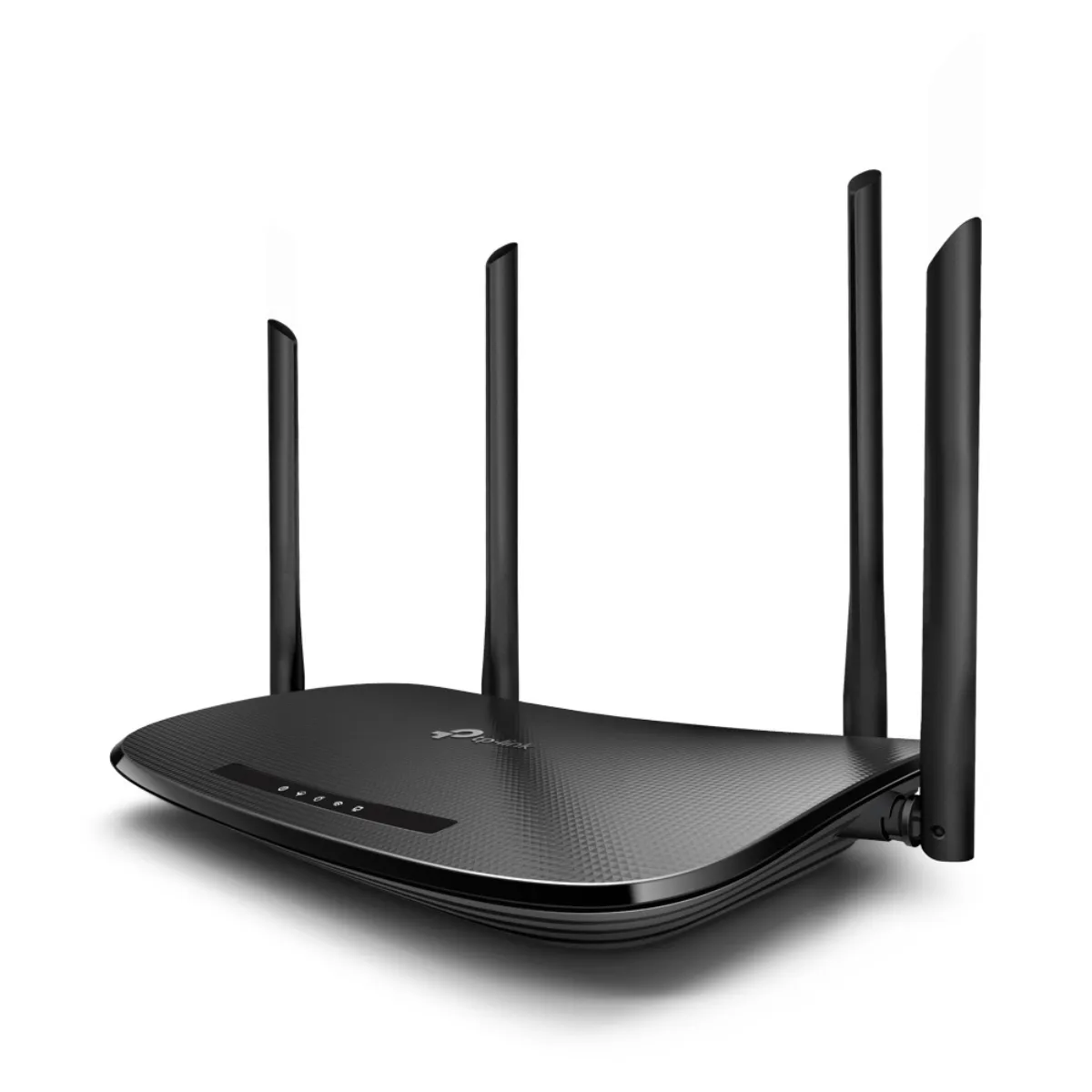

On the wireless side, the router comes with 4 fixed external antennas, which help in extending the wireless coverage within a house. It also offers features like Guest Network, Parental Controls, IPv6 support, IGMP Proxy/Snooping for IPTV, QoS / bandwidth control, and various security mechanisms (firewall, access control, MAC/IP binding, etc.).

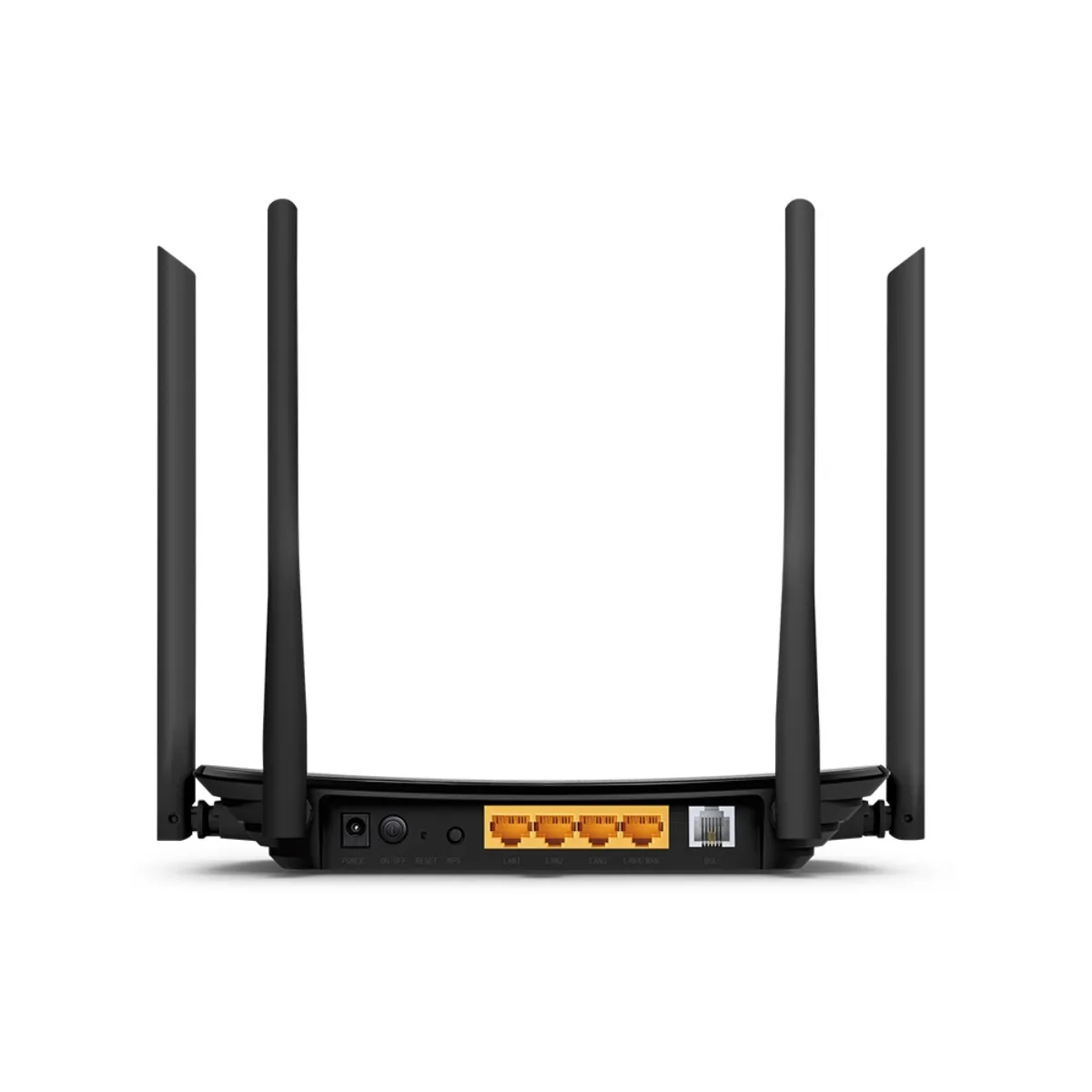

Hardware-wise, the VR300 includes 3 RJ45 LAN ports, 1 RJ45 LAN/WAN port, and an RJ11 DSL port. It supports a LAN/WAN switch so you can also use an external modem via the WAN port if needed.
In terms of physical dimensions and power, it uses an external supply (12V, 1A), and the casing houses all of the antennas and ports in a moderately compact design that fits most standard home setups.
Key Features:
- Dual-Band WiFi AC1200: Up to 867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz for fast, reliable wireless performance.
- Built-in DSL Modem: Supports VDSL2 (profile 17a), ADSL2+, ADSL2, ADSL lines with modern features like G.vector and G.INP for improved stability and performance.
- Multiple LAN/WAN Ports: Includes 3 10/100 RJ-45 LAN ports + 1 10/100 RJ-45 LAN/WAN port for flexible wired networking.
- RJ11 DSL Port: For connecting directly to your telephone line / DSL service.
- Four External Antennas: Fixed omni-directional antennas to help extend wireless coverage and maintain signal strength across your home.
- Guest Network Support: Ability to set up separate WiFi networks for guests, keeping your main network secure.
- Parental Controls: Manage access times, block or allow content / devices for safe family use.
- Advanced Security Features: Including DoS protection, SPI firewall, IP/MAC binding, domain/IP filtering, etc.
- IPTV Support: IGMP proxy / snooping & VLAN tagging / bridging to support IPTV services smoothly.
- IPv6 Ready: Compatible with IPv6, helping with future-proofing network compatibility.

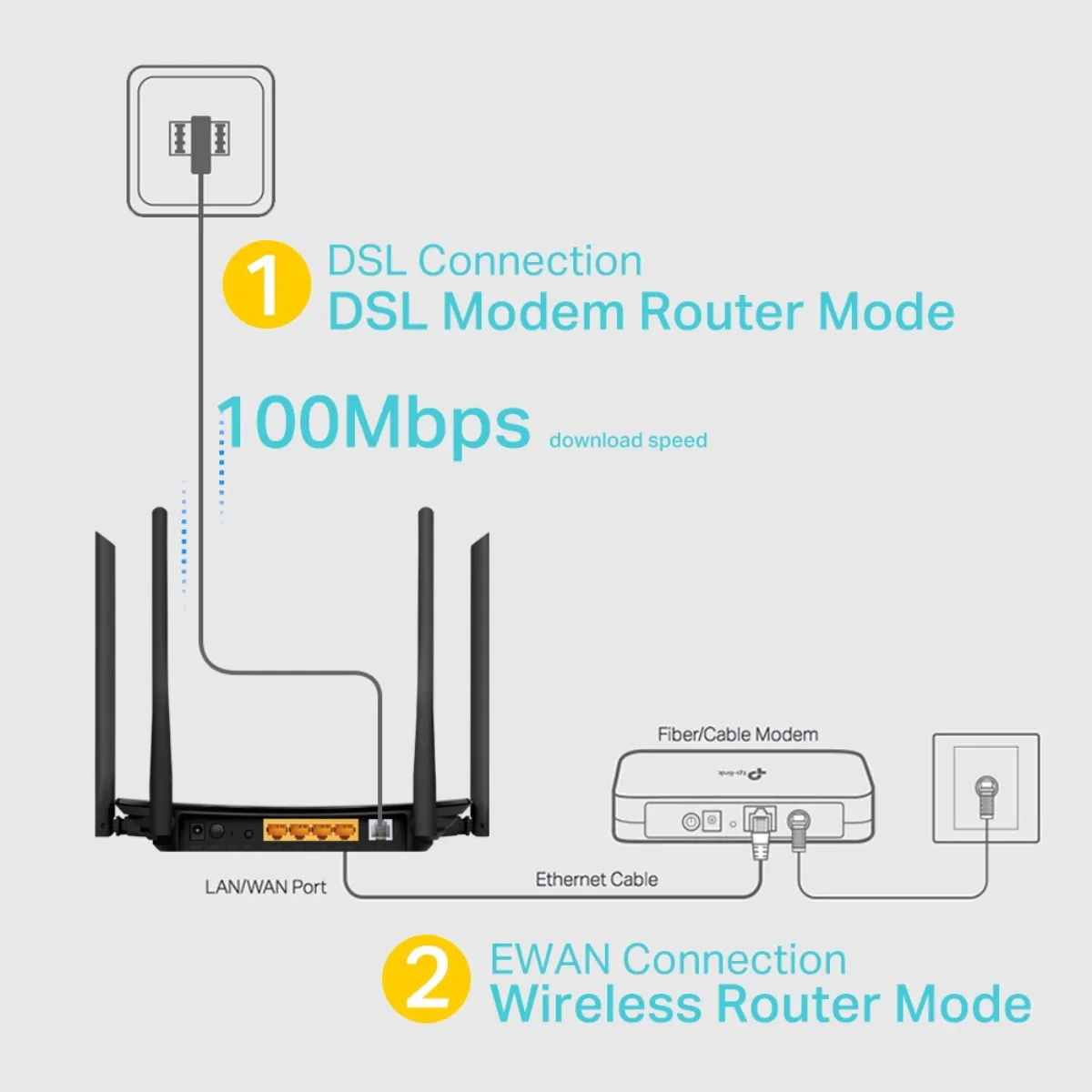

- Multiple Operation Modes: Can work as a DSL Modem Router, or purely as a Wireless Router / Access Point if using separate modem / WAN connection.
| Category | Details |
|---|---|
| Product Type | VDSL/ADSL Modem Router |
| Model | TP-Link Archer VR300 (AC1200) |
| Wireless Standards | IEEE 802.11a/n/ac 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Wi-Fi Speed | 2.4GHz: 300 Mbps, 5GHz: 867 Mbps (Total 1200 Mbps) |
| Frequency | Dual-Band 2.4GHz & 5GHz |
| DSL Compatibility | VDSL2, ADSL, ADSL2, ADSL2+ |
| DSL Features | G.vector, G.INP, Profile 17a |
| WAN/LAN Interface | 3 × 10/100Mbps LAN ports, 1 × 10/100Mbps LAN/WAN port |
| DSL Port | 1 × RJ11 Port |
| Antenna Type | 4 Fixed External Antennas (High-Gain) |
| Antenna Gain | 5 dBi |
| Buttons | Power On/Off, WPS, Reset |
| Power Supply | 12V DC, 1A |
| Dimensions (W × D × H) | 230 × 144 × 37 mm |
| LED Indicators | Power, DSL, Internet, LAN, WLAN (2.4GHz/5GHz), WPS |
| Security |
