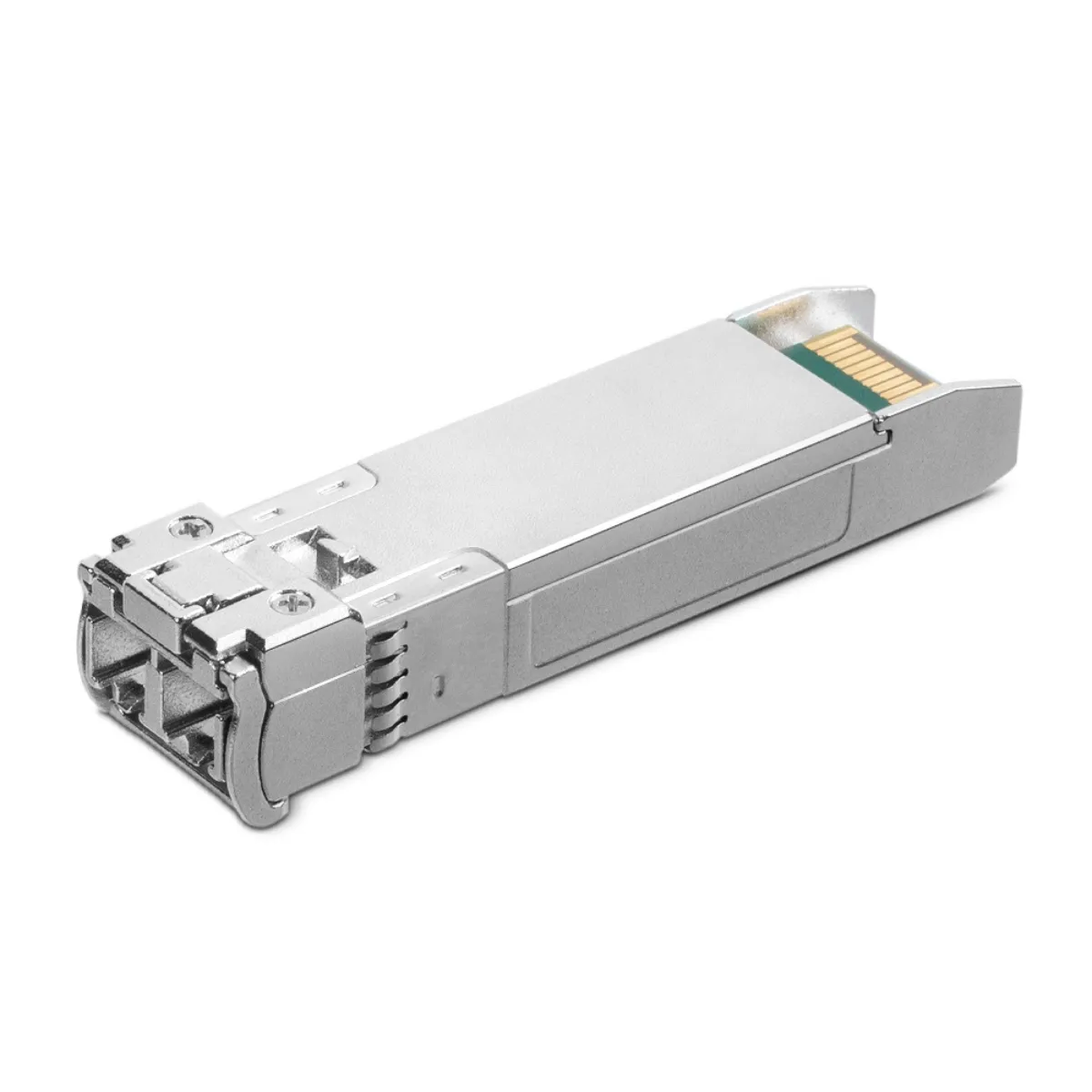

The TP-Link TL-SM5110-LR is a high-performance 10G SFP+ single-mode fiber transceiver designed for long-distance, high-speed network connections. It provides reliable 10 Gbps data transfer over single-mode fiber with a maximum link distance of up to 10 km, making it ideal for enterprise networks, data centers, and carrier-class applications.
This transceiver uses a standard LC connector and is fully compatible with a wide range of TP-Link switches and other 10G SFP+ devices, enabling flexible deployment and seamless integration into existing fiber infrastructures.
Key Features:
- 10GBase-LR Standard
Supports IEEE 802.3ae for 10 Gbps Ethernet connections over long-distance single-mode fiber. - Long-Distance Transmission
Reliable fiber connectivity up to 10 km at 10 Gbps, suitable for inter-building and campus networks. - LC Single-Mode Connector

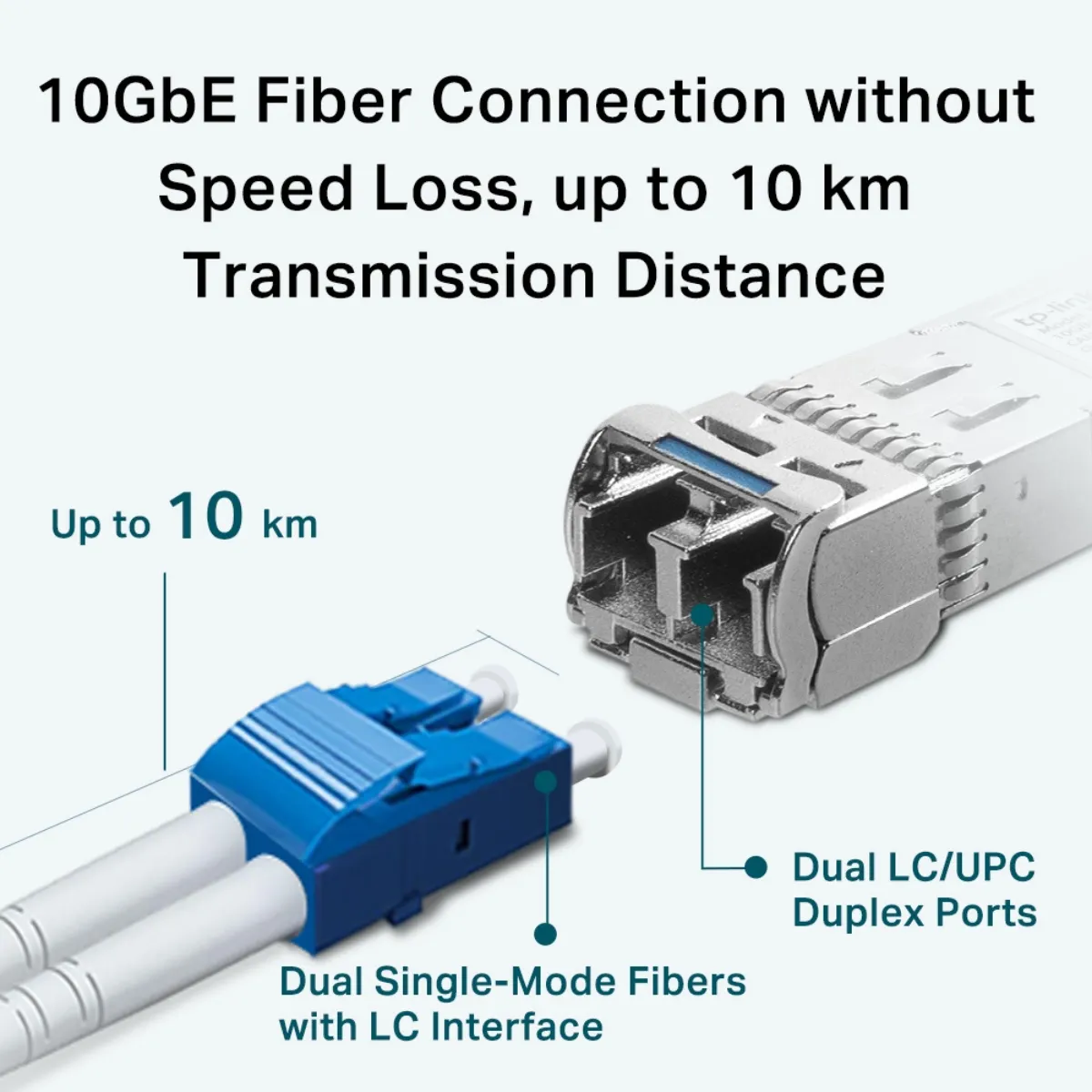

Standard LC duplex interface ensures broad compatibility and easy installation. - Hot-Pluggable Design
Easily install or replace the transceiver without powering down the network device, reducing downtime. - Low Power Consumption
Energy-efficient design ensures minimal power usage while maintaining high performance. - Wide Compatibility

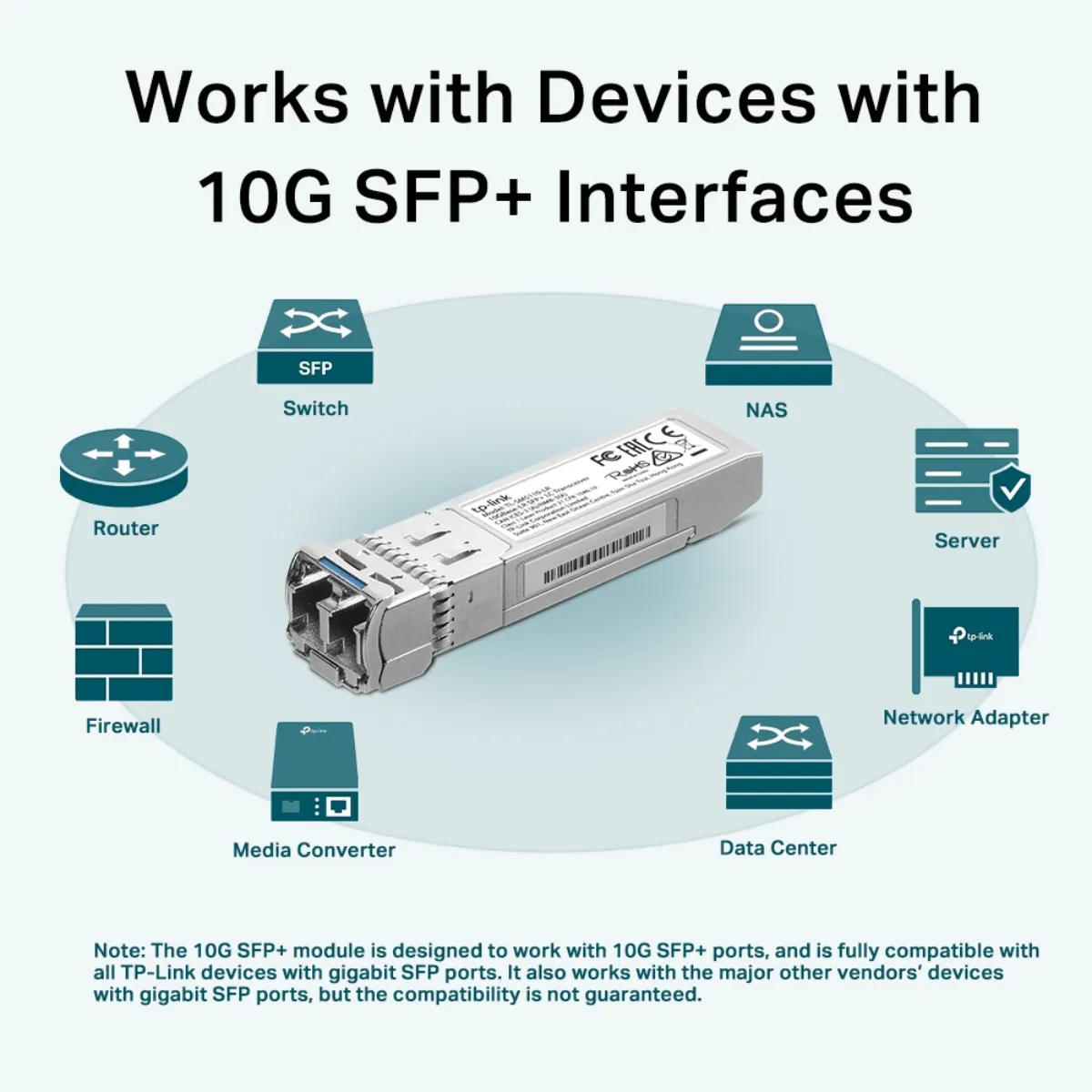

Works with TP-Link 10G SFP+ ports and is interoperable with many other 10G SFP+ fiber switches, routers, and network devices. - Reliable & Durable
Built with industrial-grade components for stable performance and long-term reliability in enterprise environments. - Plug-and-Play Operation
No configuration needed; simply plug it into an SFP+ port and connect to the fiber link for instant 10 Gbps connectivity. - Ideal Use Cases
Perfect for high-speed backbone connections, data center uplinks, enterprise fiber networks, and campus fiber networks.
| Specification | Details |
|---|---|
| Model | TP-Link TL-SM5110-LR |
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) |
| Data Rate | 10 Gbps (10GBase-LR) |
| Fiber Type | Single-mode fiber (SMF) |
| Connector Type | LC duplex |
| Maximum Transmission Distance | 10 km |
| Wavelength | 1310 nm |
| Hot-Pluggable | Yes |
| Compliance / Standard | IEEE 802.3ae 10GBase-LR, RoHS compliant |
| Power Consumption | Typically < 1 W |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 5% to 85% non-condensing |
| Compatibility | TP-Link 10G SFP+ ports and interoperable with other 10G SFP+ switches |
| Use Case | Data center uplinks, enterprise fiber networks, campus backbone links |

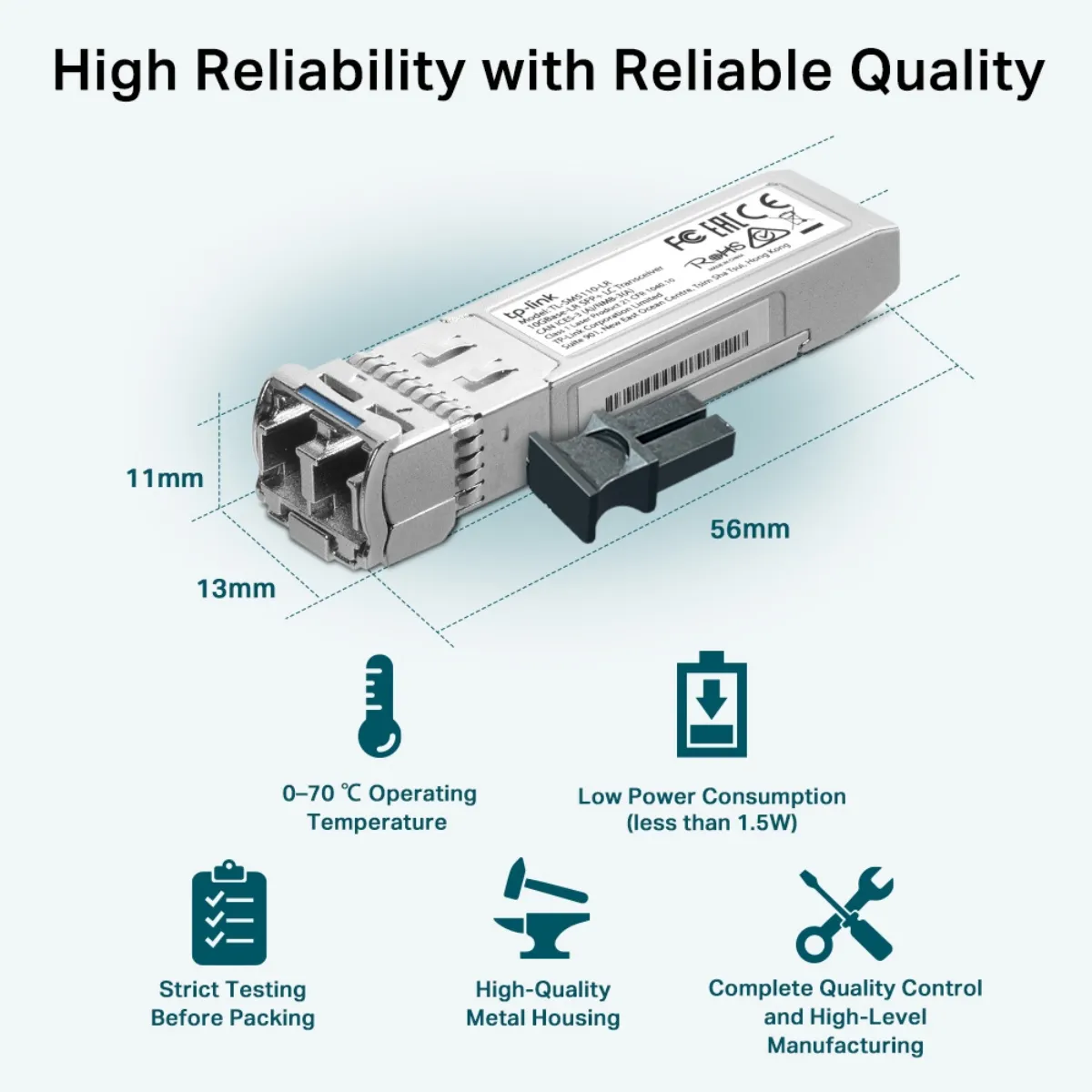

| Dimensions | Standard SFP+ module size: ~56.5 × 13.4 × 8.5 mm |
| Weight | ~30 g |
