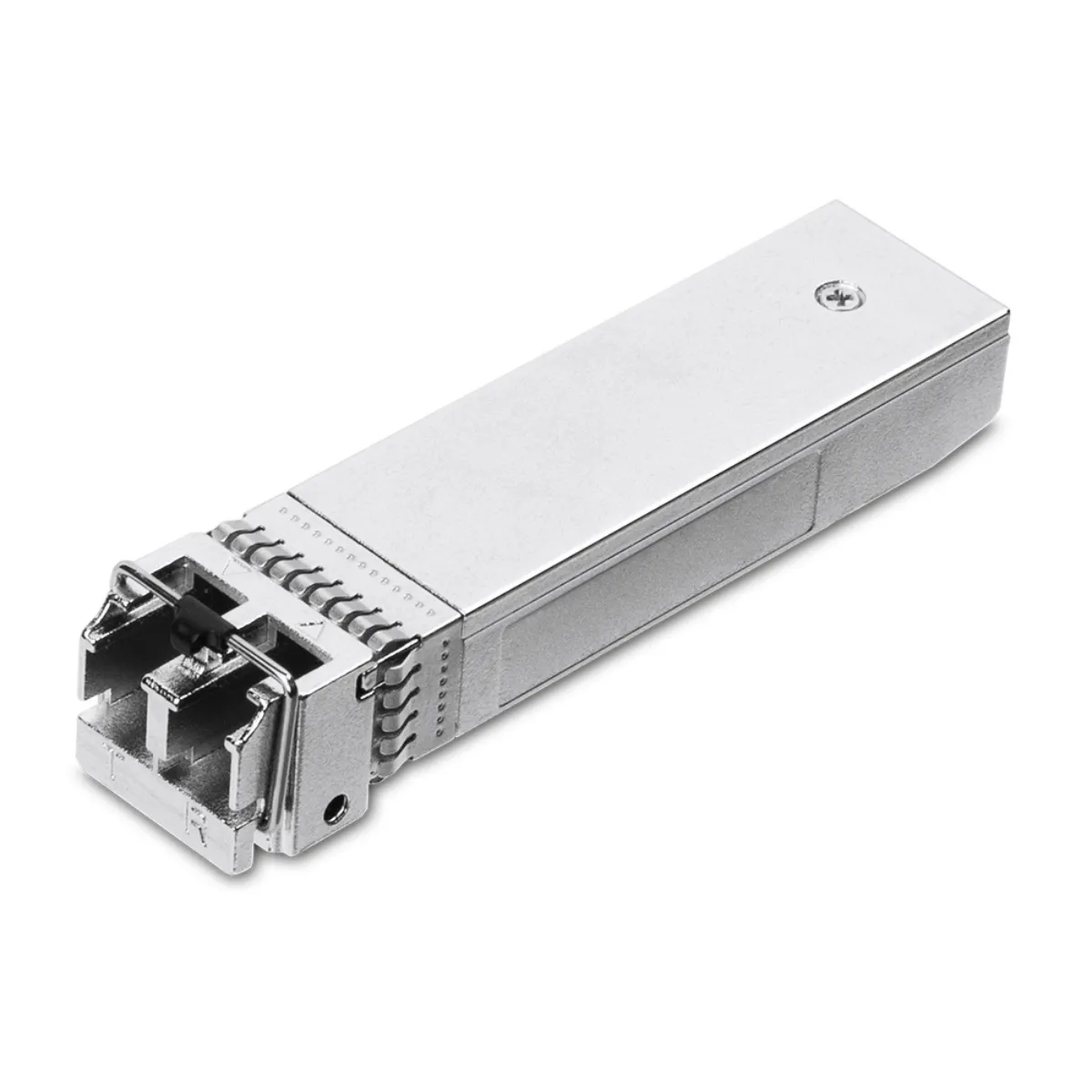

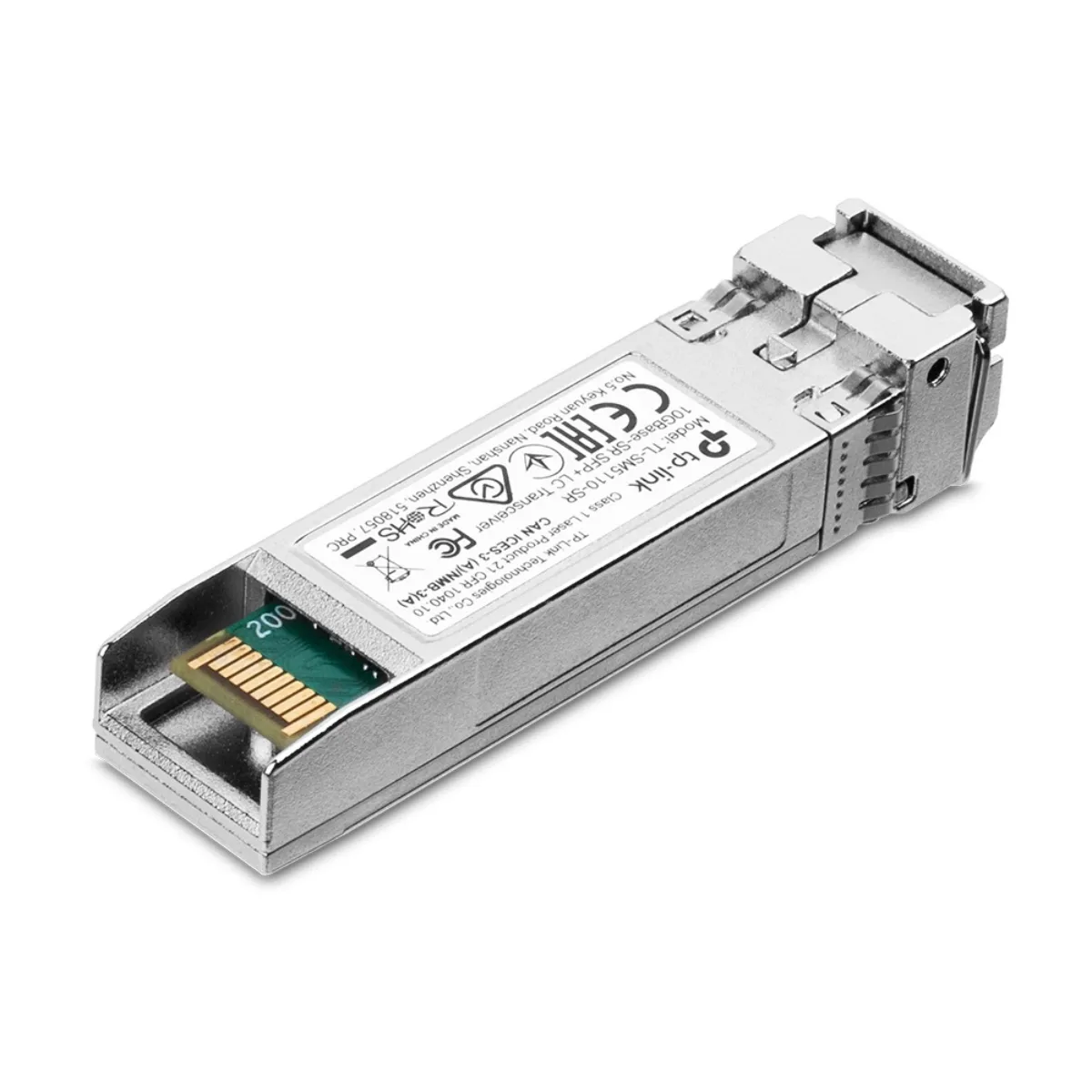

The TP-Link TL-SM5110-SR is a high-performance 10G SFP+ transceiver designed for short-range fiber connections over multi-mode fiber (MMF). Delivering 10 Gbps data rates, this transceiver ensures fast, reliable, and low-latency connectivity within enterprise networks, data centers, and high-speed network backbones.
Equipped with a standard LC duplex connector, the TL-SM5110-SR is hot-pluggable and fully compatible with TP-Link 10G SFP+ switches, as well as other SFP+ ports that support 10GBase-SR standards, providing flexible deployment and seamless integration into existing network infrastructures.
Key Features
- 10GBase-SR Standard
Supports IEEE 802.3ae 10G Ethernet over short-range multi-mode fiber for high-speed network connections. - Short-Range Multi-Mode Fiber
Provides reliable 10 Gbps connectivity up to 300 m using OM3 fiber, ideal for intra-building or data center links. - LC Duplex Connector
Standard LC interface ensures compatibility with a wide range of 10G SFP+ switches and devices. - Hot-Pluggable Design
Install or replace the transceiver without powering down devices, minimizing network downtime. - Energy-Efficient Operation
Low power consumption while maintaining high performance for sustainable network operations. - Wide Compatibility
Works with TP-Link 10G SFP+ ports and is interoperable with other 10GBase-SR compliant devices. - Durable & Reliable
Built with industrial-grade components to ensure long-term stable performance in enterprise or data center environments. - Plug-and-Play Operation
Simple installation with instant connectivity—no configuration required. - Ideal Use Cases
Perfect for intra-building connections, data center uplinks, enterprise network backbones, and high-speed server-to-switch links.
| Specification | Details |
|---|---|
| Model | TP-Link TL-SM5110-SR |
| Form Factor | SFP+ (Small Form-factor Pluggable Plus) |
| Data Rate | 10 Gbps (10GBase-SR) |
| Fiber Type | Multi-mode fiber (MMF) |
| Connector Type | LC duplex |
| Maximum Transmission Distance | Up to 300 m (OM3 fiber) |
| Wavelength | 850 nm |
| Hot-Pluggable | Yes |
| Compliance / Standard | IEEE 802.3ae 10GBase-SR, RoHS compliant |
| Power Consumption | Typically < 1 W |
| Operating Temperature | 0 °C to 70 °C |
| Storage Temperature | -40 °C to 85 °C |
| Operating Humidity | 5% to 85% non-condensing |
| Compatibility | TP-Link 10G SFP+ ports and interoperable with other 10GBase-SR SFP+ devices |
| Use Case | Data center uplinks, intra-building connections, enterprise LAN backbone links |
| Dimensions | Standard SFP+ module size: ~56.5 × 13.4 × 8.5 mm |
| Weight | ~30 g |
