Noyafa / NF-308R / LCD Wire Fault Locator

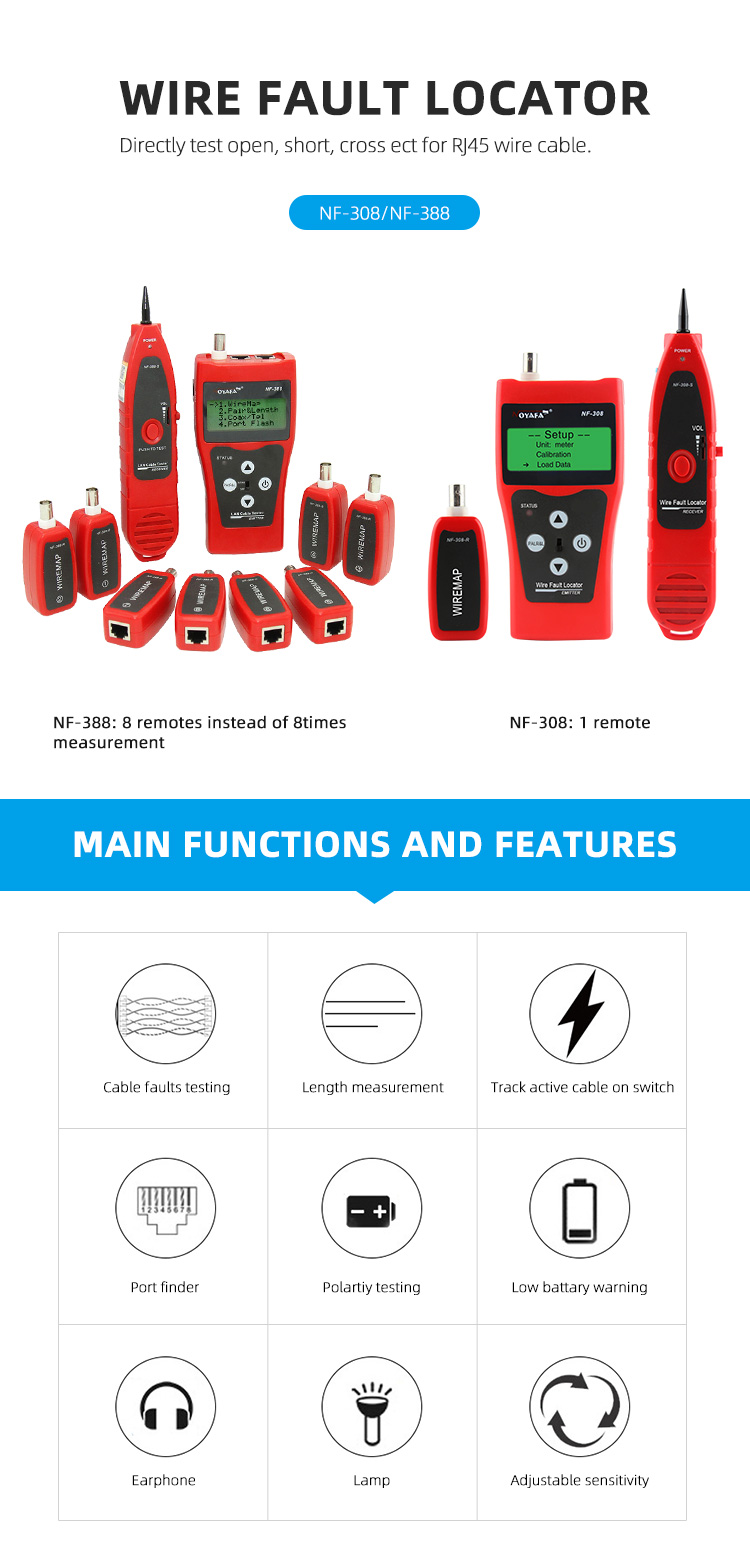

Main Functions:
1. Directly hunt 5E, 6E, telephone wire, coaxial cable, USB cable and other cables.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.

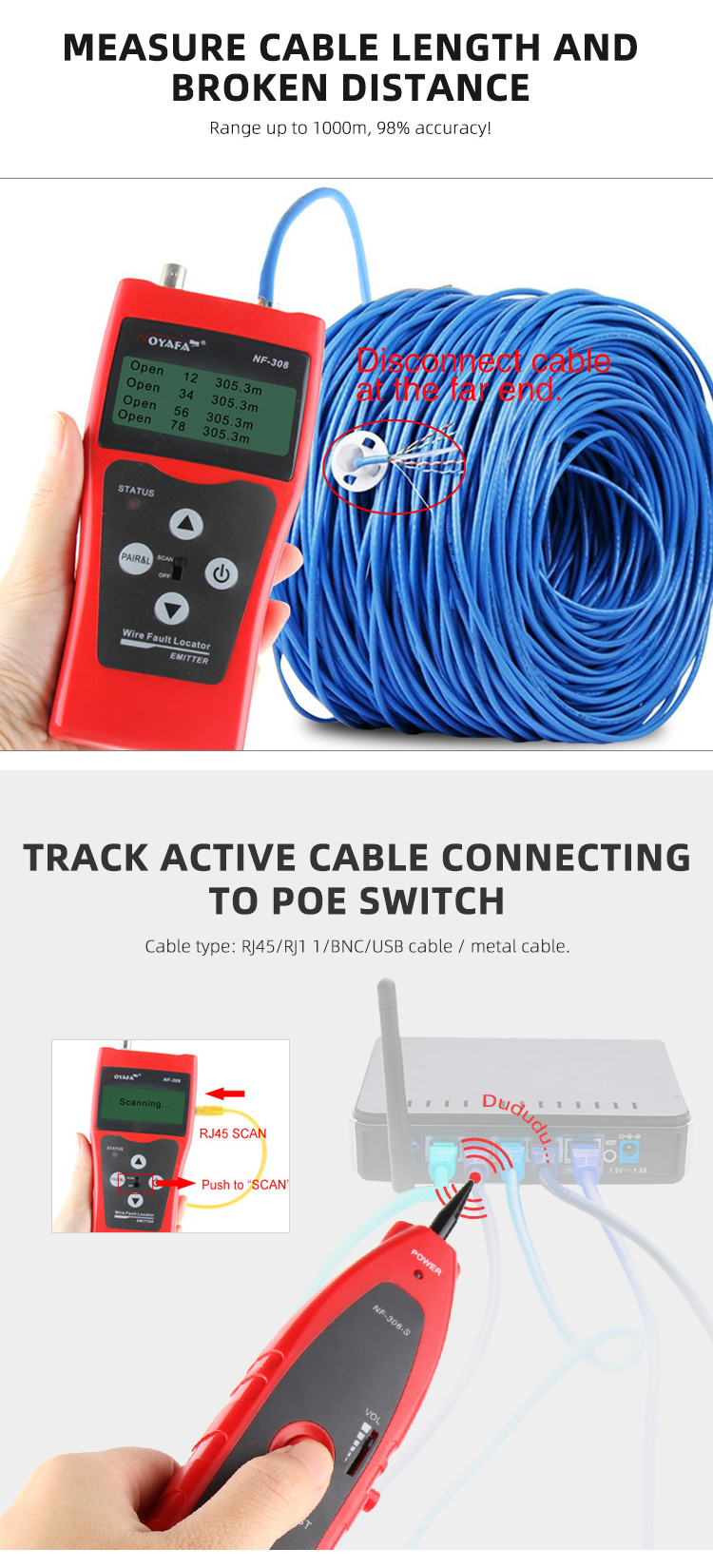

4. Measure cable length and determine the distance of open circuit and short circuit.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.
2. Check wiring error in 5E, 6E, coaxial cable, such as open circuit,short circuit, jumper wire, reverse connection.
3. Locate the wiring or connection error.
4. Measure cable length and determine the distance of open circuit and short circuit.
5. Automatically time-delay shut off and backlight display function.
6. Single board computer software watchdog design and reliable operation.
7. Verify RJ45 and BNC conductors.

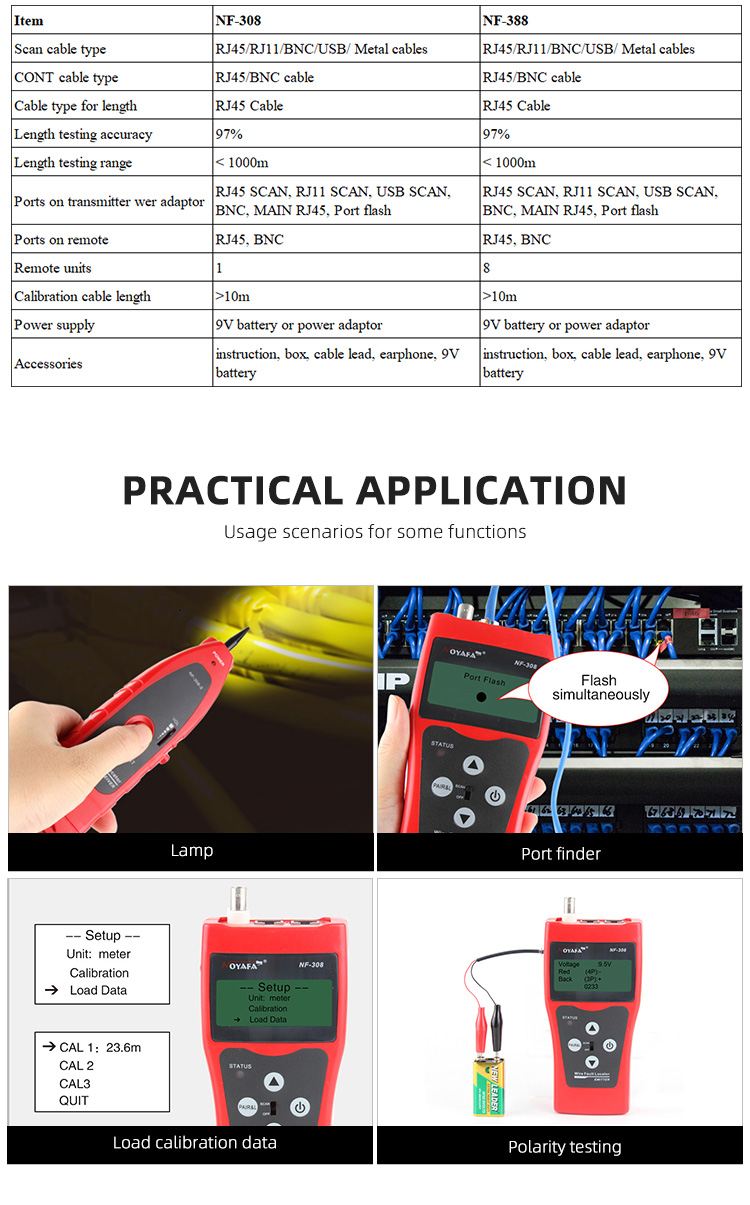

Technical Index
|
NF-308 Transmitter specifications
|
|
|
Tone frequency
|
455KHz
|
|
Max. distance of transmission
|
2000m
|
|
Max. distance of cable map
|
300m
|
|
Max. working current
|
Less than 70mA
|
|
Tone mode
|
2 Tone adjustable
|
|
Compatible connectors
|
RJ11，RJ45, BNC, USB
|
|
Max. signal voltage
|
15Vp-p
|
|
Function and faults LCD display
|
LCD display ( wiremap, Tone, short, No adapter, Low battery )
|
|
Cable map indication
|
LCD (#1-#8)
|
|
Shielded indication
|
LCD ( #9)
|
|
Battery Type
|
DC9.0V（NEDA 1604/6F22 DC9V x 1pcs）
|
|
Dimension(LxWxD)
|
185x80x32mm
|
|
NF-308 Receiver specifications
|
|
|
Frequency
|
455KHz
|
|
The Max. working current
|
Less than 70mA
|
|
Battery Type
|
DC9.0V（NEDA 1604/6F22 DC9V) x1pc
|
|
Dimension(LxWxD)
|
218x46x29 mm
|
|
NF-308 Remote unit specifications
|
|
|
Compatible connectors
|
RJ45, BNC
|
|
Dimension(LxWxD)
|
107x30x24mm
|
